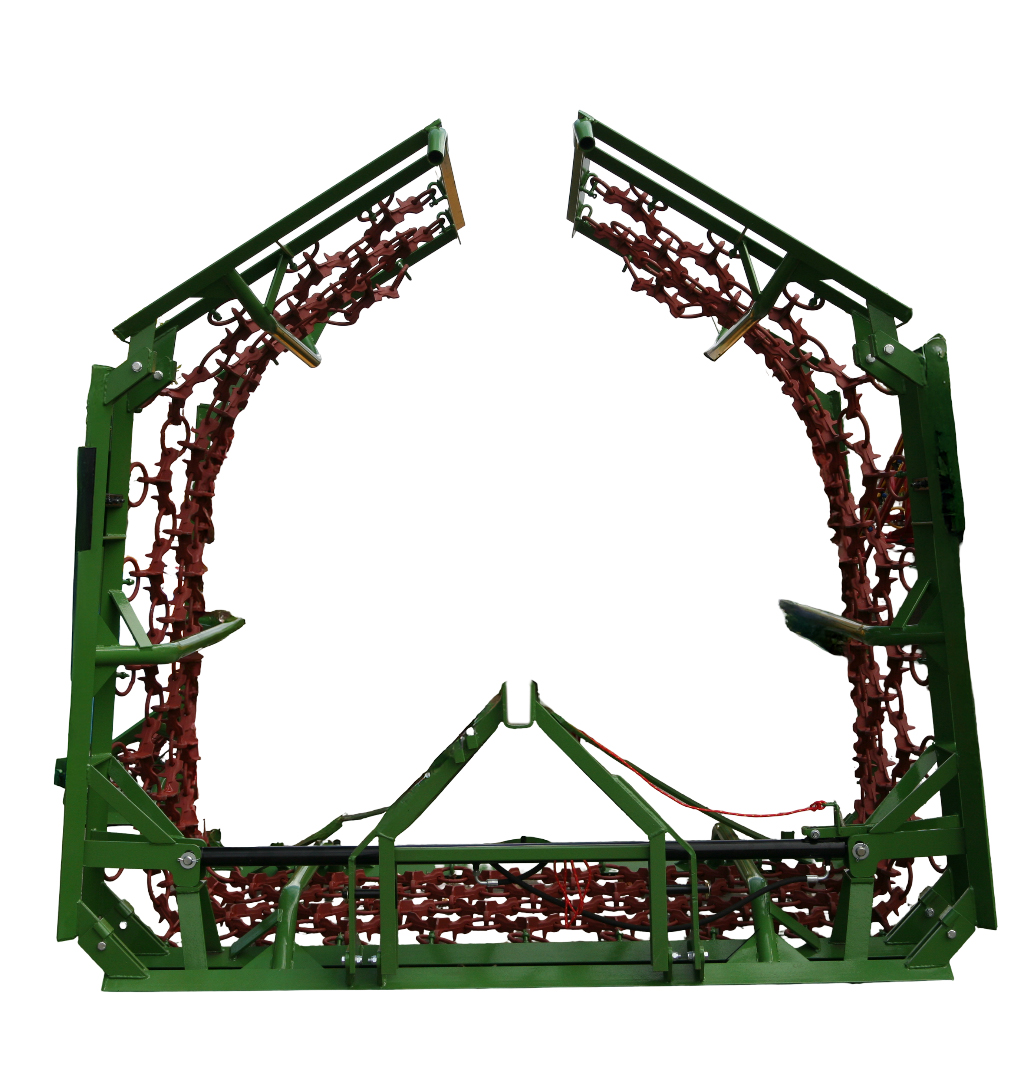

Chain harrow, 1 cylinder, closed frame
| Ref.No. | Working width [m] | Folding | Weight [kg] |
| 4-row harrows | |||
| 1100 | 3,0 | Mechanical | 260 |
| 1106 | 4,0 | Mechanical | 320 |
| 1108 | 4,0 | Hydraulic | 360 |
| 1116 | 5,0 | Mechanical | 440 |
| 1118 | 5,0 | Hydraulic | 470 |
| 1124 | 6,0 | Hydraulic | 540 |
| 1134 | 8,0 | Hydraulic | 780 |
| 3-row harrows | |||
| 1099 | 3,0 | Mechanical | 220 |
| 1107 | 4,0 | Hydraulic | 380 |
| 1105 | 4,0 | Mechanical | 280 |
| 1117 | 5,0 | Hydraulic | 420 |
| 1123 | 6,0 | Hydraulic | 500 |
Standard equipment
• 3-point linkage cat. II
• Heavy cast
• For 4m and 5m chain harrow mechanical or hydraulic unfolding (1 double acting cylinder)
• For 6m and 8m chain harrows hydraulic unfolding (1 double acting cylinder)
• Mechanical transport lock
• Connecting the harrow working field to the main frame by shackles and hooks
• Skids for harrows width 5m to 8m
Optional equipment
• 3–point linkage cat. II, box type for 3-6m harrow
• Sharp cast
• Skids for harrow 3m and 4m
• Galvanized frame – net mounted on hooks
• Weeder (for width 4-6m, tine 7mm)
• Galvanized weeder (for width 4-6m)
Product number
1100,1106,1108,1116,1118,1124,1134,1099,1107,1105,1117,1123
Description
| Ref.No. | Working width [m] | Folding | Weight [kg] |
| 4-row harrows | |||
| 1100 | 3,0 | Mechanical | 260 |
| 1106 | 4,0 | Mechanical | 320 |
| 1108 | 4,0 | Hydraulic | 360 |
| 1116 | 5,0 | Mechanical | 440 |
| 1118 | 5,0 | Hydraulic | 470 |
| 1124 | 6,0 | Hydraulic | 540 |
| 1134 | 8,0 | Hydraulic | 780 |
| 3-row harrows | |||
| 1099 | 3,0 | Mechanical | 220 |
| 1107 | 4,0 | Hydraulic | 380 |
| 1105 | 4,0 | Mechanical | 280 |
| 1117 | 5,0 | Hydraulic | 420 |
| 1123 | 6,0 | Hydraulic | 500 |
