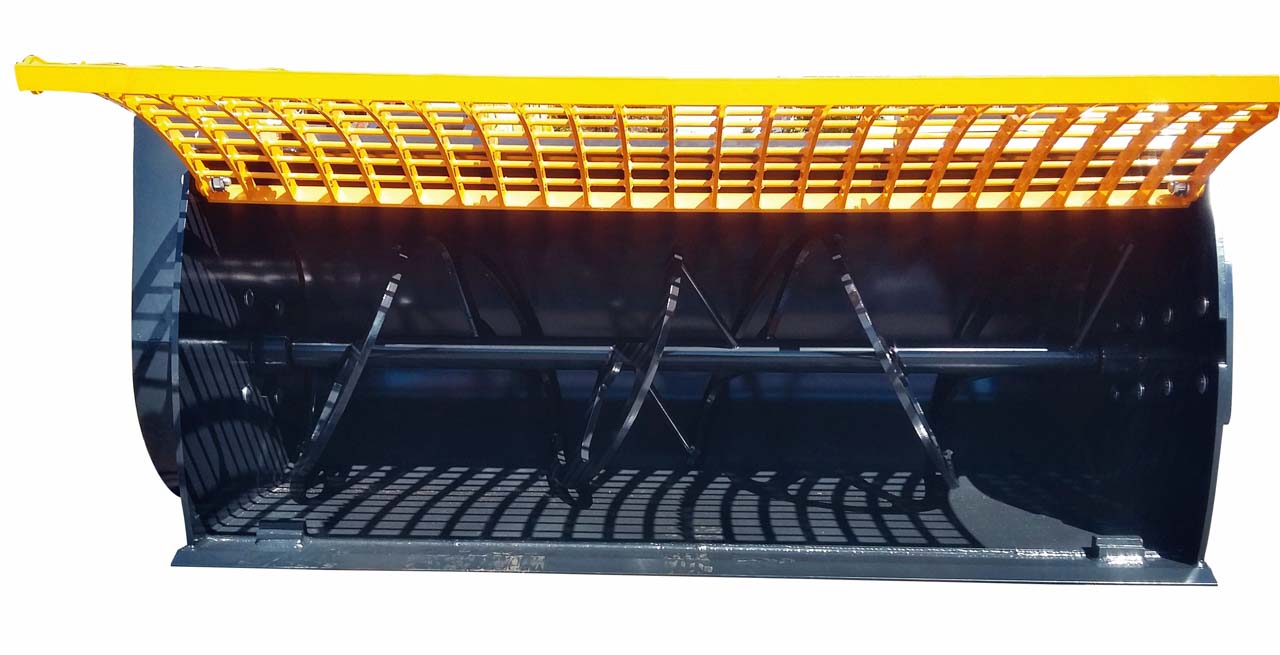

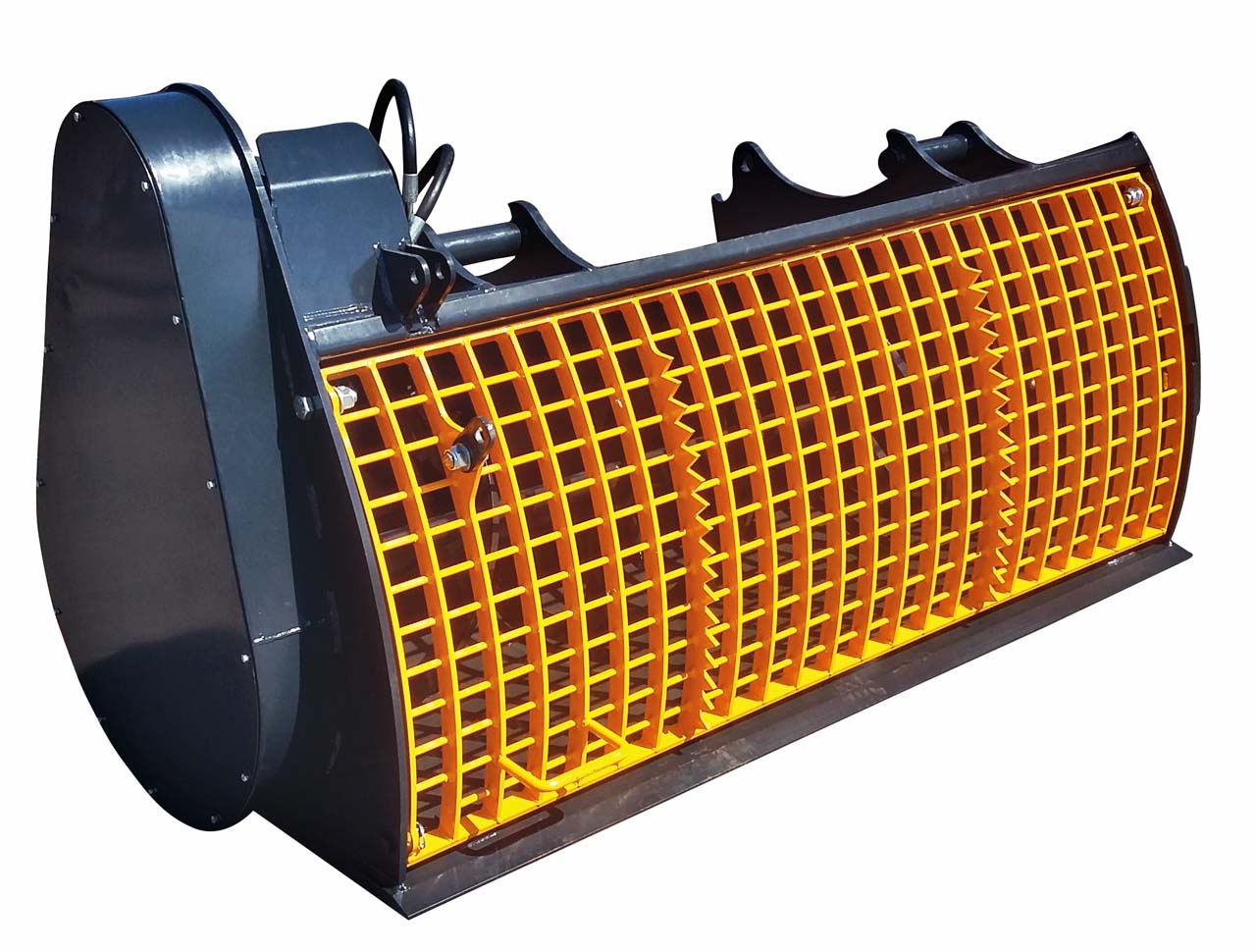

Concrete mixing bucket

Ref.No.	Working width [m]	Width [m]	Weight [kg]	Capacity [m3]
2433	1,2	1,40	595	0,44
2434	1,5	1,70	675	0,53
2435	1,8	2,00	750	0,62
2436	2,0	2,20	795	0,68

Standard equipment

• Euro linkage
• 1-section hydraulic connection / two pipes / + controller installation cable
• Height 1020mm, depth 1045mm
• Sheet thickness: side 12mm
• Sheet thickness: body 8mm
• Sheet thickness: bottom 15mm
• Blade 150x 20mm hb500
• Agitator: made of hardox steel flat bars
• Mixer drive – hydraulic motor
• Discharge of mixed material by hydraulic controlled valve in the bottom of a shovel
• Remote control powered from the tractor 12v system to control the electrovalve in the hydraulic system of the mixer
• Aggregate segregating sieve during filling of the mixer

Optional equipment

• Other type of mount

Product number
2433;2434;2435;2436
