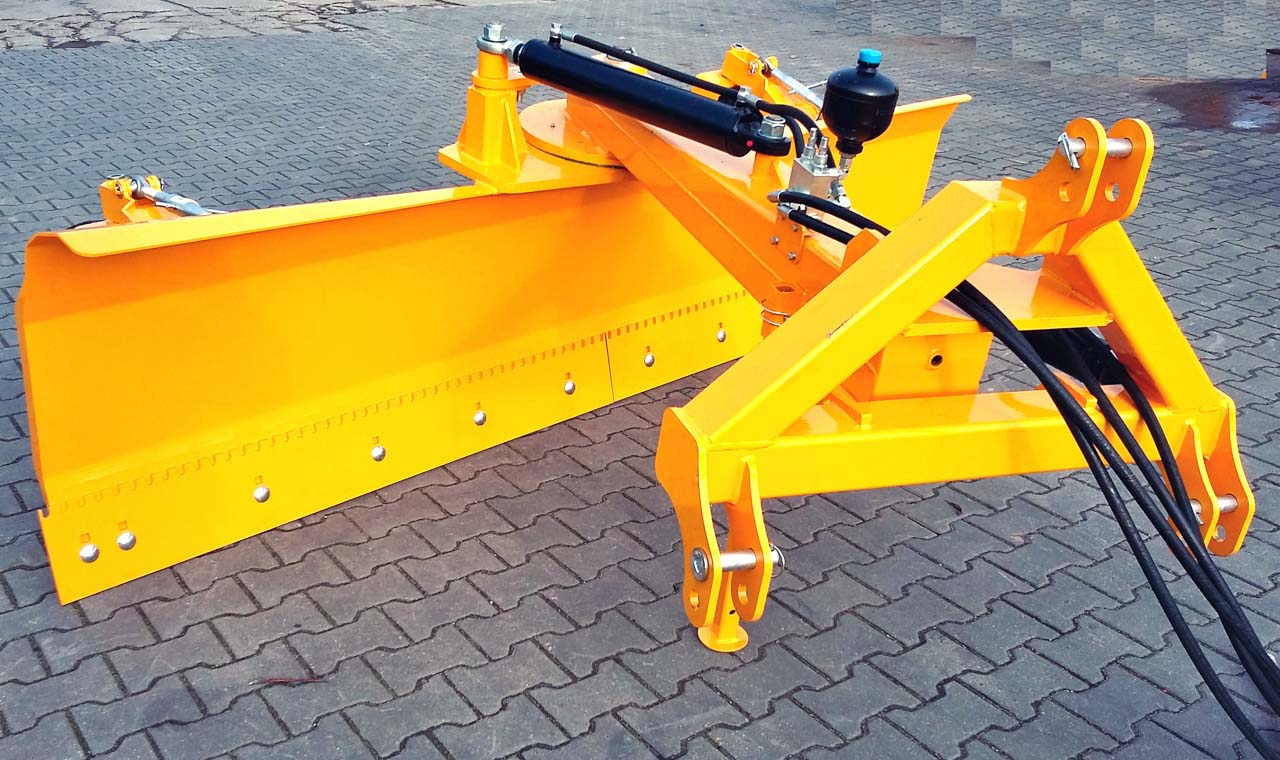

Heavy duty dozer blade

Standard equipment

• 3-point linkage cat. III
• 720mm blade height, raised to 850mm on one side
• 200×12 mm (500 hb) steel hardox scraper, distance between screws 305mm
• Hydraulic controled heavy scraper: cylinder rotating the blade for front or rear operation in the range of 230 ° and the cylinder controlling the drawbar tilt in the range of +/- 30 °
• Two support wheels 6,00×9, with mechanical (smooth) adjustment of the scraper working height
• Supporting leg
• Blade overload protection (hydraulic accumulator on the cylinder changing the blade angle)

Optional equipment

• Other type of mount

Product number
2555BN;2556BN;2557BN
