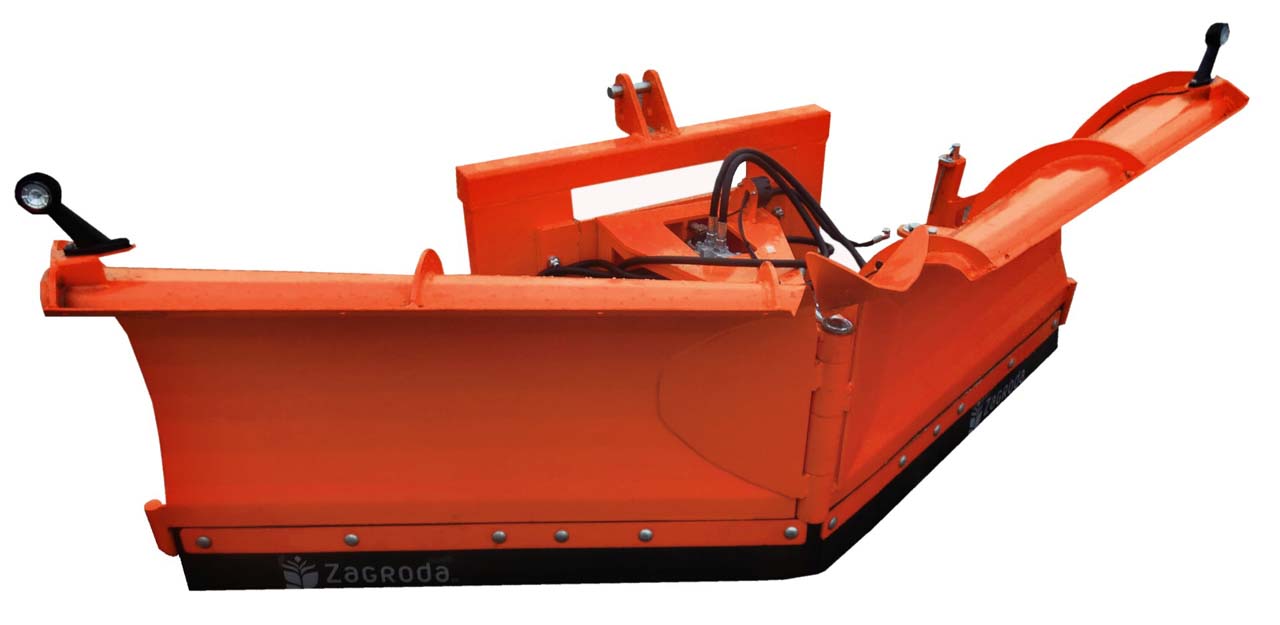

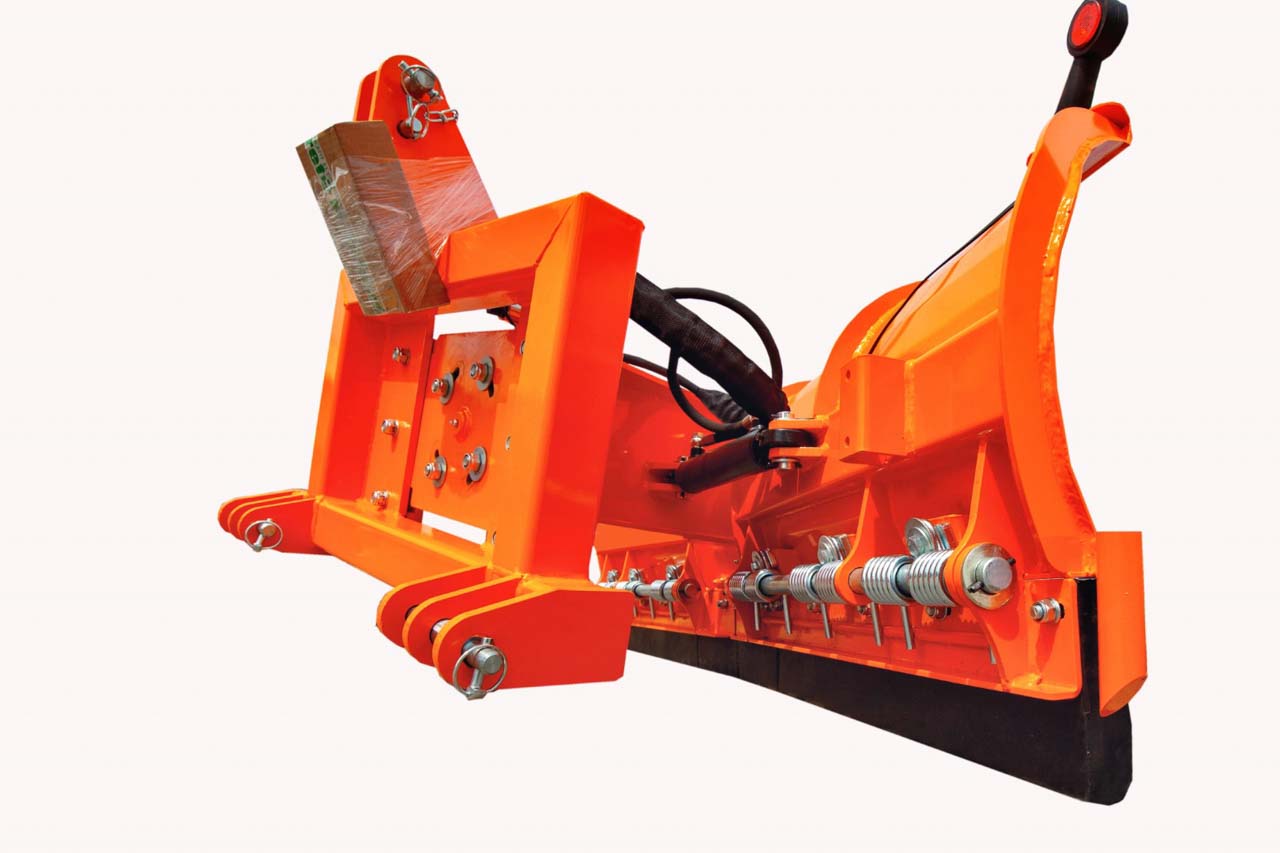

Light divided snow plow
| Ref.No. | Working width [m] | Length/width/height [m] | Weight [kg] |
| 5111 | 1,8 | 0,92 / 1,8 / 0,75 | 240 |
| 5112 | 2,0 | 0,92 / 2,0 / 0,75 | 260 |
| 5113 | 2,2 | 0,92 / 2,2 / 0,75 | 280 |
Standard equipment
• 3-point linkage cat. I
• Mouldboard height 75,0/65,0cm
• Mouldboard turning angle (right and left) up to 30 °
• Mouldboard hydraulic control, two cylinders
• Side ground copying system at the hitch frame in the range of: lateral tilt +/- 5⁰
• Blade spring protection
• 50 mm rubber strip
• Required number of hydraulic connections 2 (1 pair)
• LED lights
Optional equipment
• Skids
• 160/50 or 200/50 support wheels
• Blade made of 150 x 16mm wear-resistant steel
• 150 x 25mm polyurethane blade
• 3-point linkage cat. I and II or Euro mount and 3-point linkage cat. II
• Other type of mount
Product number
5111;5112;5113
Description
| Ref.No. | Working width [m] | Length/width/height [m] | Weight [kg] |
| 5111 | 1,8 | 0,92 / 1,8 / 0,75 | 240 |
| 5112 | 2,0 | 0,92 / 2,0 / 0,75 | 260 |
| 5113 | 2,2 | 0,92 / 2,2 / 0,75 | 280 |
