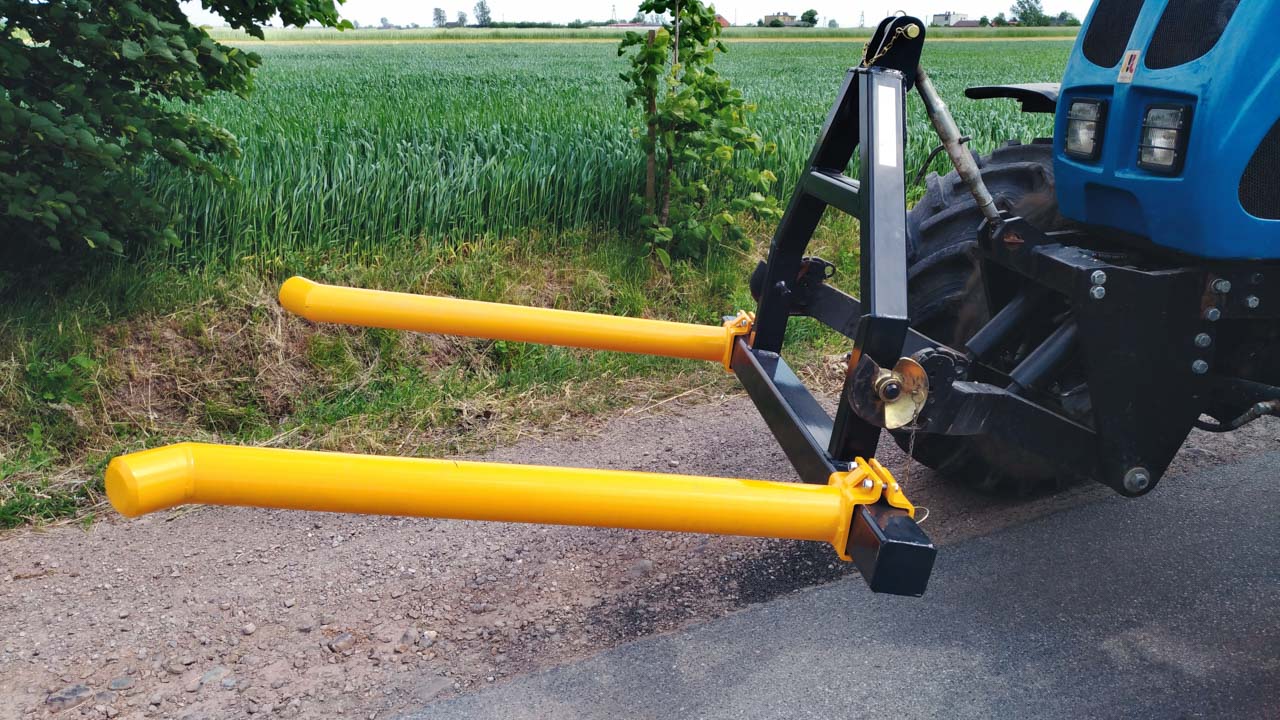

Mechanical, multi purpose bale carrier for the standard
Ref.No. | Bale diameter [m] | Loading capacity [kg] | Weight [kg] |
1921 | 0.80-1.80 | 1000 | 130 |
Standard equipment
• 3-point linkage cat. I and II or EURO mount
• Dimensions: length:130mm, height: 950mm, depth: 1460mm
• Arms: tube: 90mm x 3,0mm, length:1100mm
• Arm spacing mechanically adjustable in the range of: 840mm-1230mm
Optional equipment
• Pallet forks
• Tines
• Other type of brackets
Product number
1921
Description
Ref.No. | Bale diameter [m] | Loading capacity [kg] | Weight [kg] |
1921 | 0.80-1.80 | 1000 | 130 |
