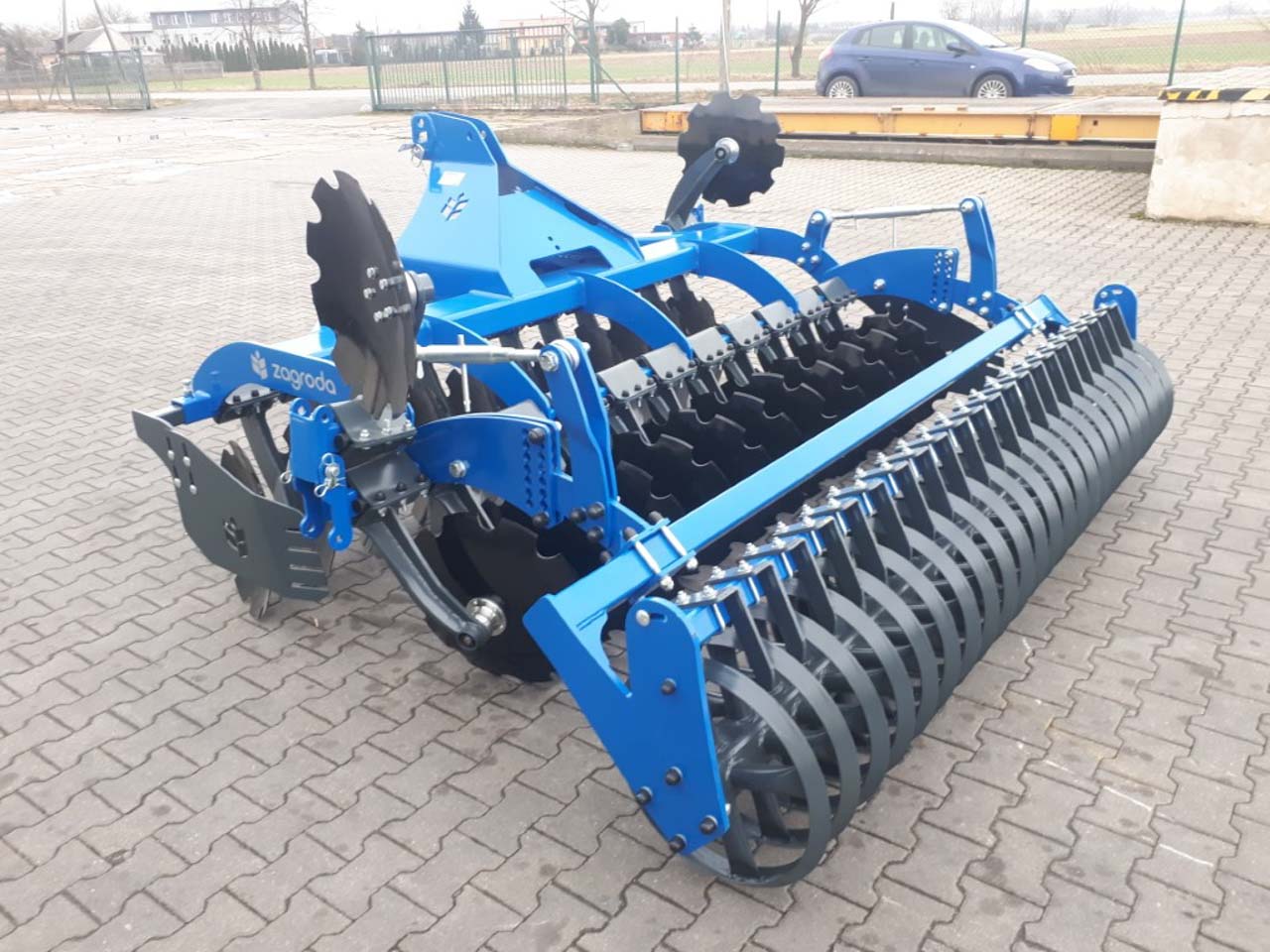

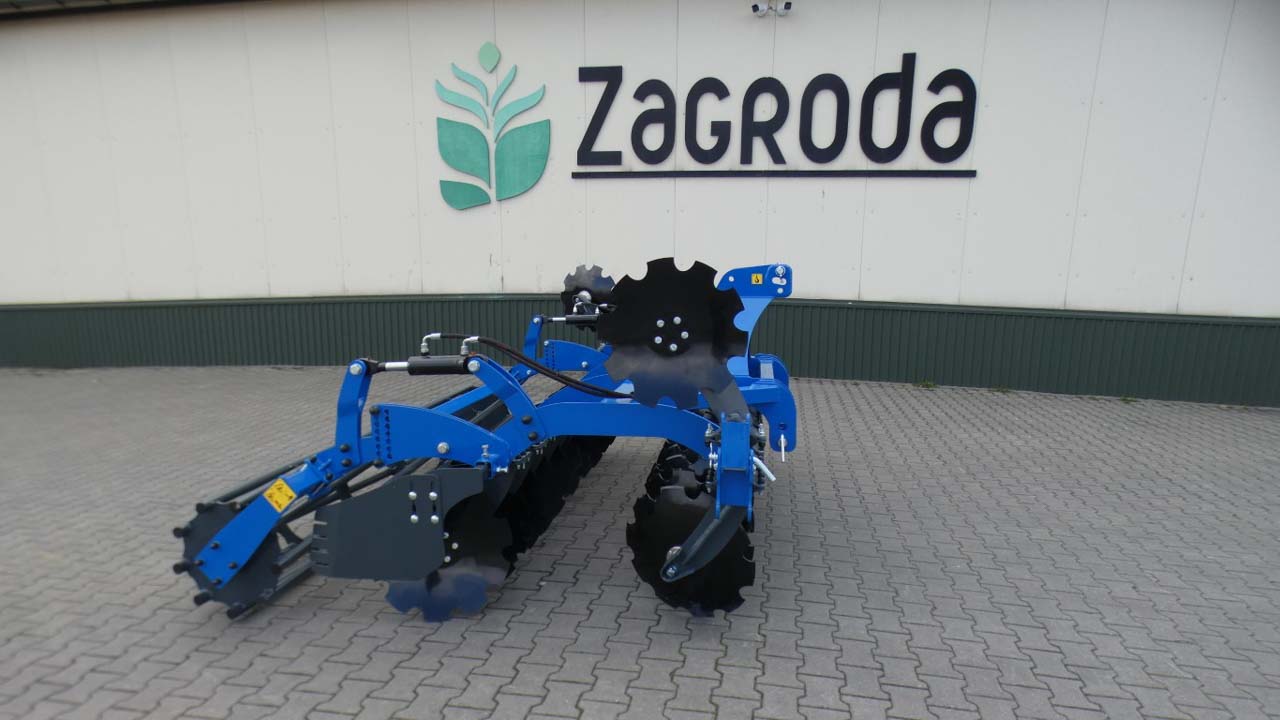

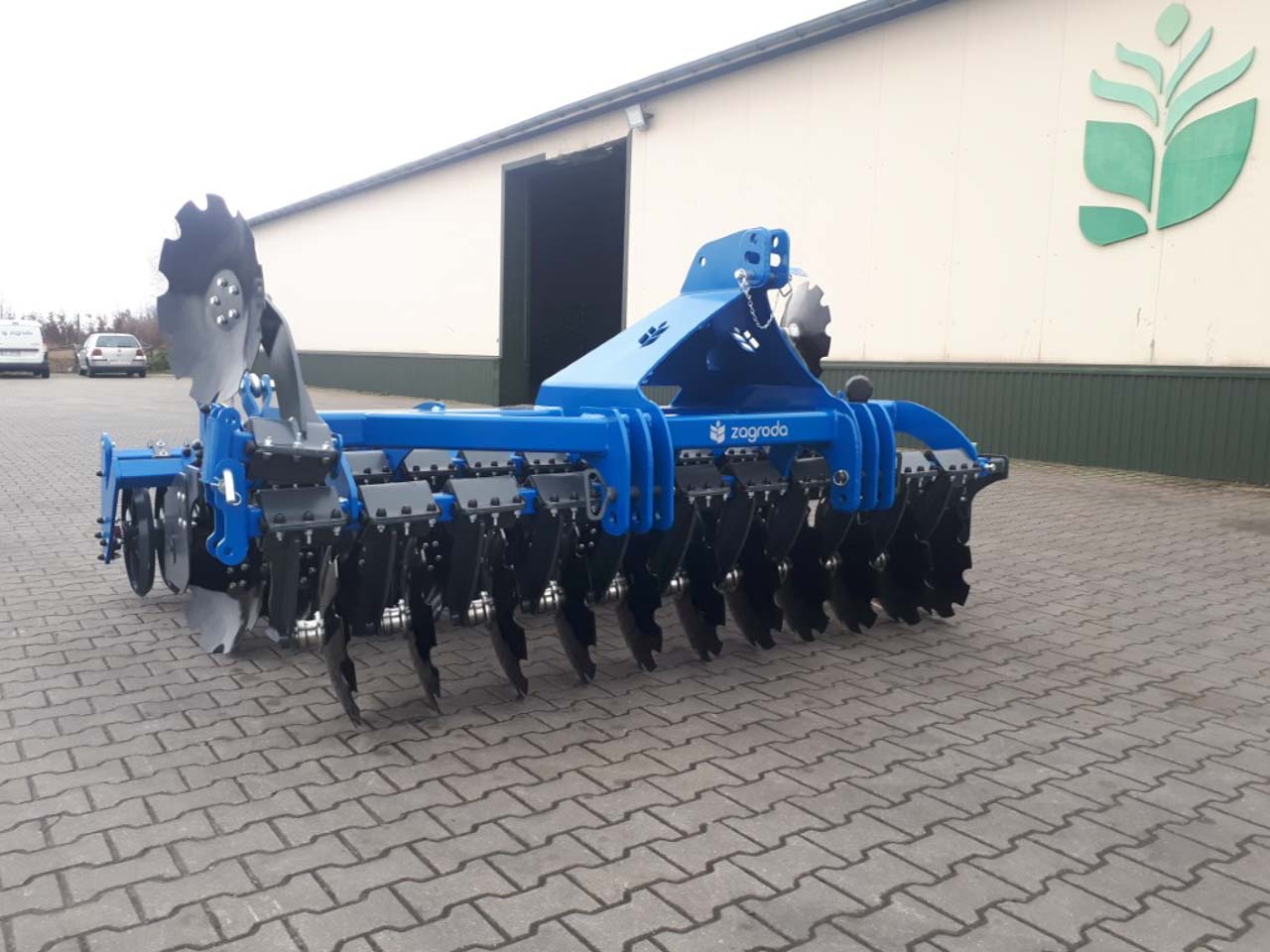

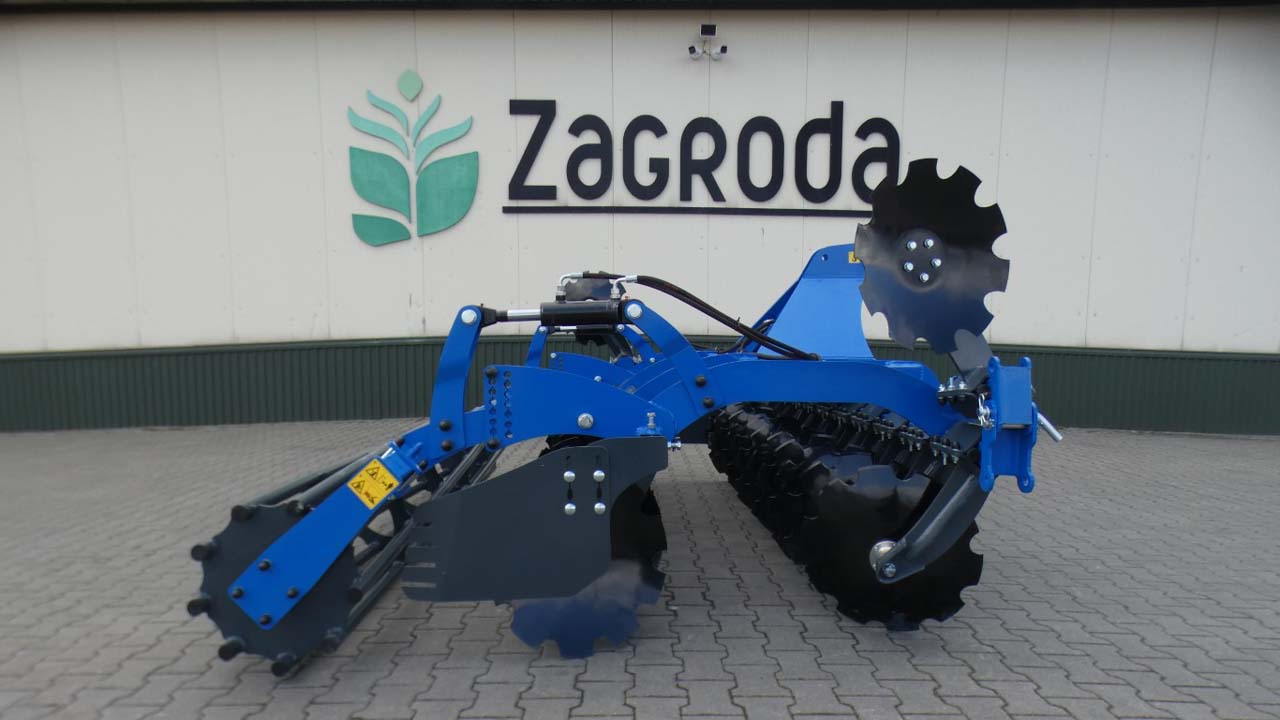

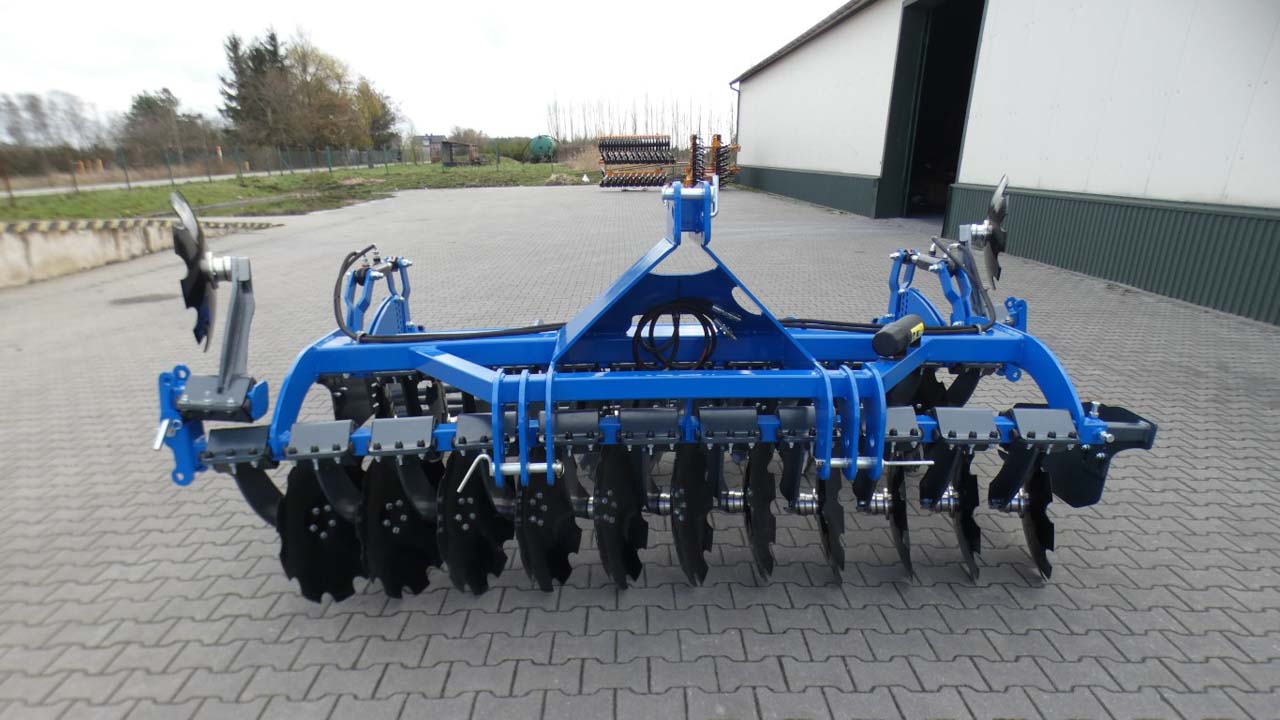

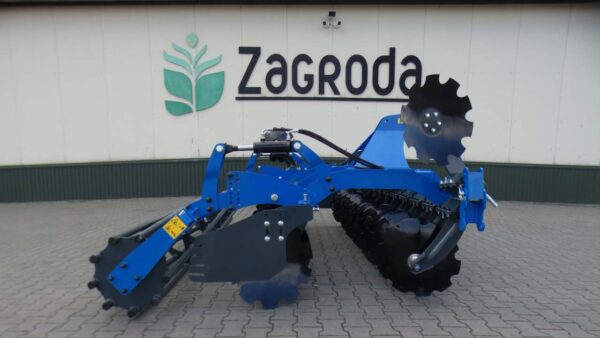

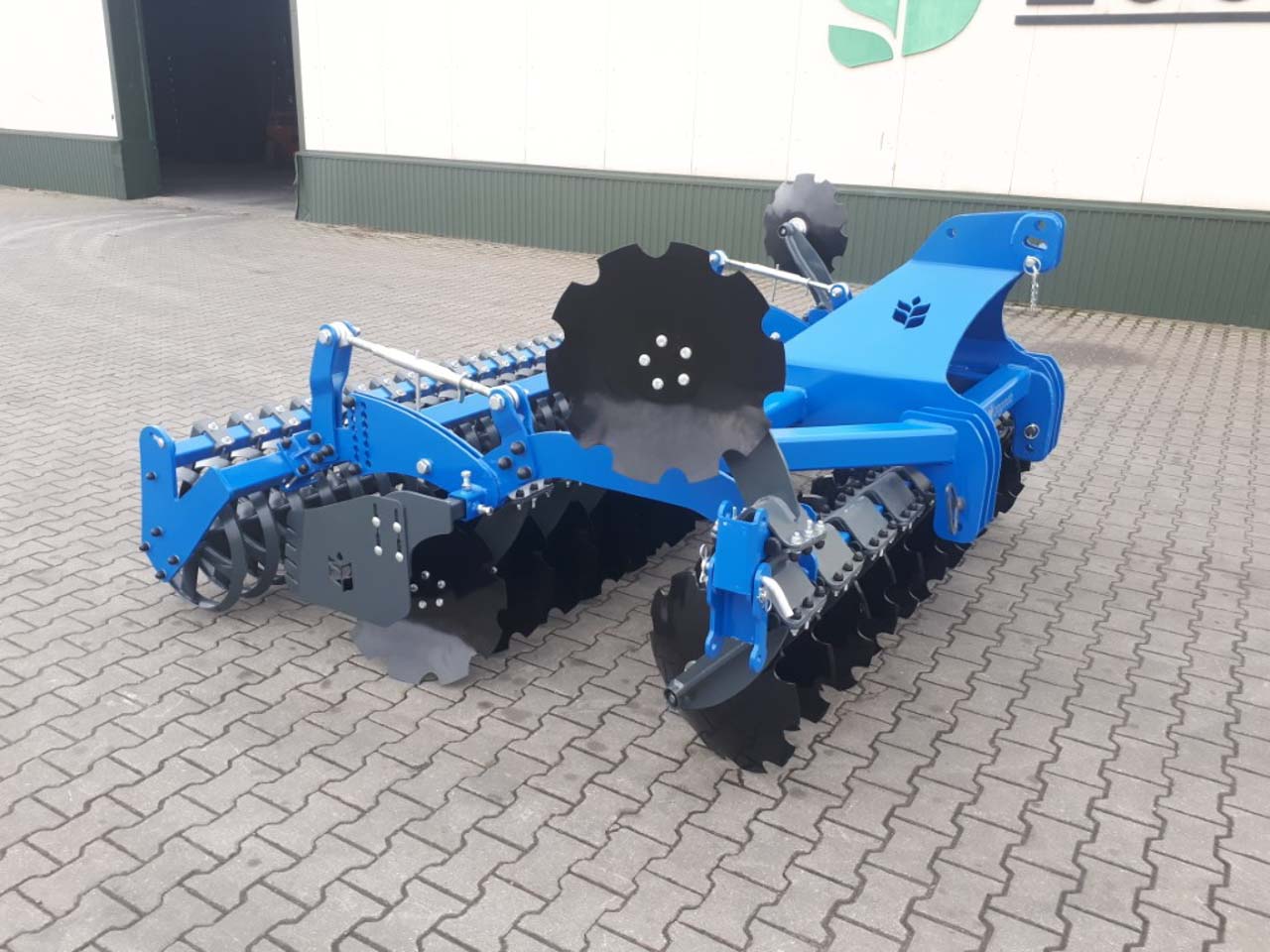

Mounted disc harrow RX with rubber disc protection and mechanical depth adjustment
| REF.NO. | WORKING WIDTH [M] | DISC DIAMETER [MM] | SPACE BETWEEN THE ROWS [MM] | NUMBER OF DISCS [PCS.] | POWER DEMAND [HP] | WEIGHT [KG] |
| 8521RX | 3,0 | 560 | 950 | 24 | 80-110 | 1240 |
| 8522RX | 3,5 | 560 | 950 | 28 | 90-120 | 1370 |
| 8523BRX | 4,0 | 560 | 950 | 32 | 100-130 | 1700 |
Standard equipment
• Two rows of discs with a diameter of o 560 mm (C-type discs),
• Rubber shock absorbers
• Tubular shaft, string or string tined with a diameter of 500 mm
• side screens
• spacing between disc rows 95 cm
• reinforced cat II and cat III hitches or automatic hitch beam up to 3 m machine length
Optional equipment
• Fusion roller 600 mm
• Crosskill roller 500 mm
• V-Ring roller 500 or 600 mm
• Packer roller 500 or 600 mm (scrapers)
• Tubular roller, string 600 mm
• Flex roller 500 mm (scrapers)
• T-roller 500 mm
• U-roller 500 or 600 mm
• Rubber roller 500 mm
• 610 mm discs with maintenance-free hub only
• Hydraulic rear roller adjustment
• Scraper row
• Lights
• Maintenance-free hub
• Working widths 2.0m, 2.2m, 2.5m, 2.7m – available on special order
Product number
8521RX, 8522RX, 8523BRX
Description
| REF.NO. | WORKING WIDTH [M] | DISC DIAMETER [MM] | SPACE BETWEEN THE ROWS [MM] | NUMBER OF DISCS [PCS.] | POWER DEMAND [HP] | WEIGHT [KG] |
| 8521RX | 3,0 | 560 | 950 | 24 | 80-110 | 1240 |
| 8522RX | 3,5 | 560 | 950 | 28 | 90-120 | 1370 |
| 8523BRX | 4,0 | 560 | 950 | 32 | 100-130 | 1700 |
