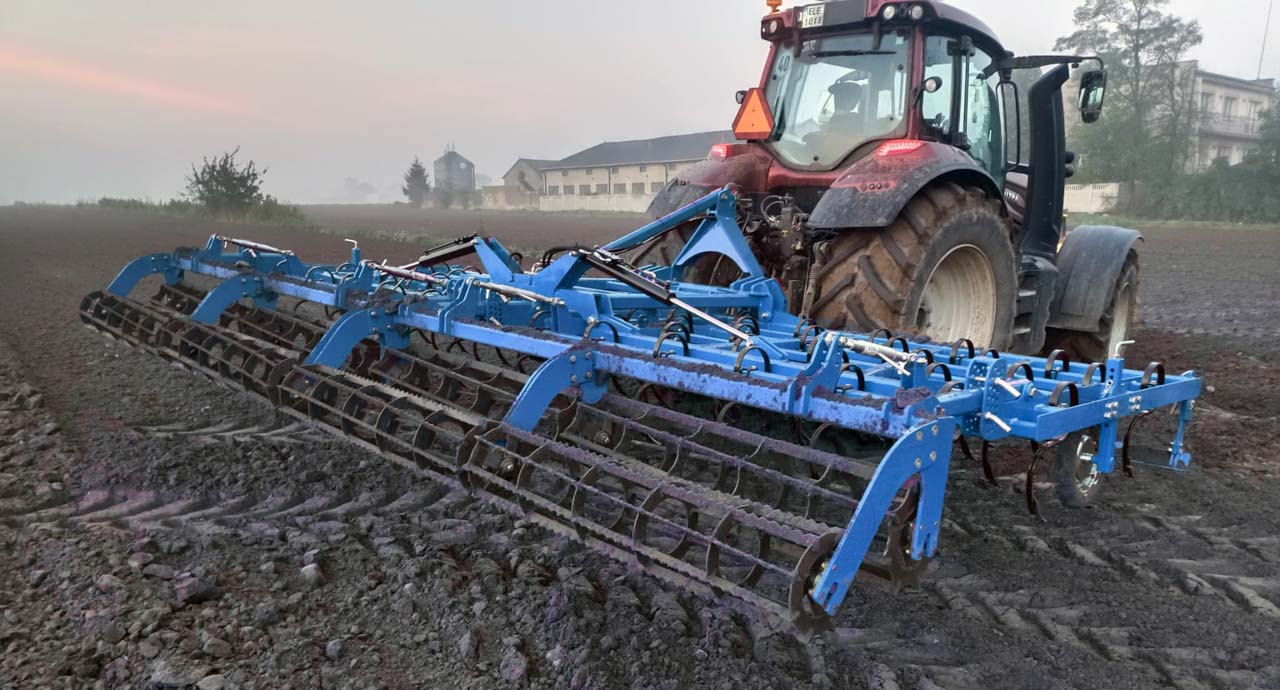

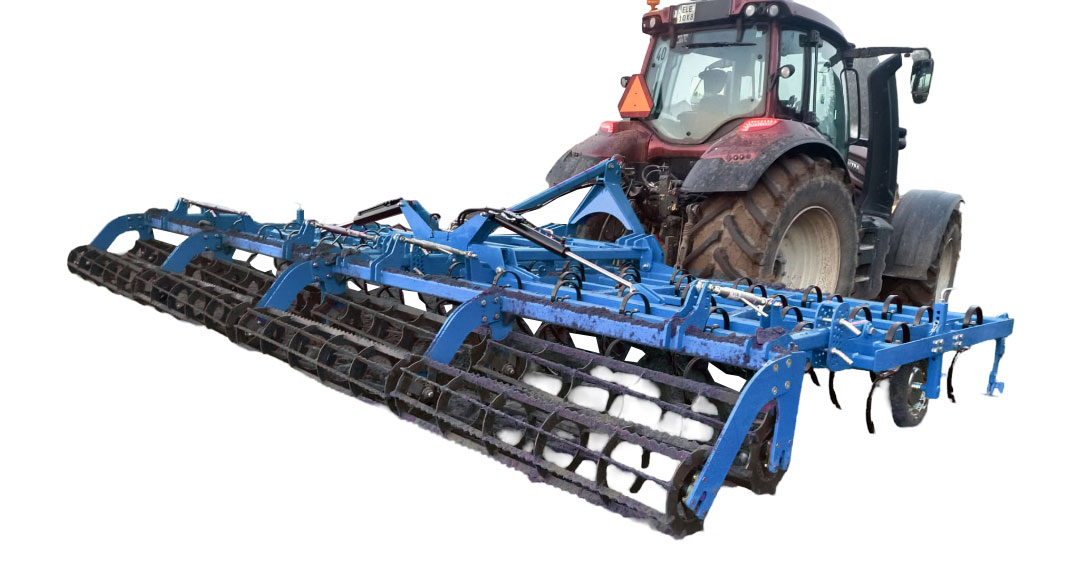

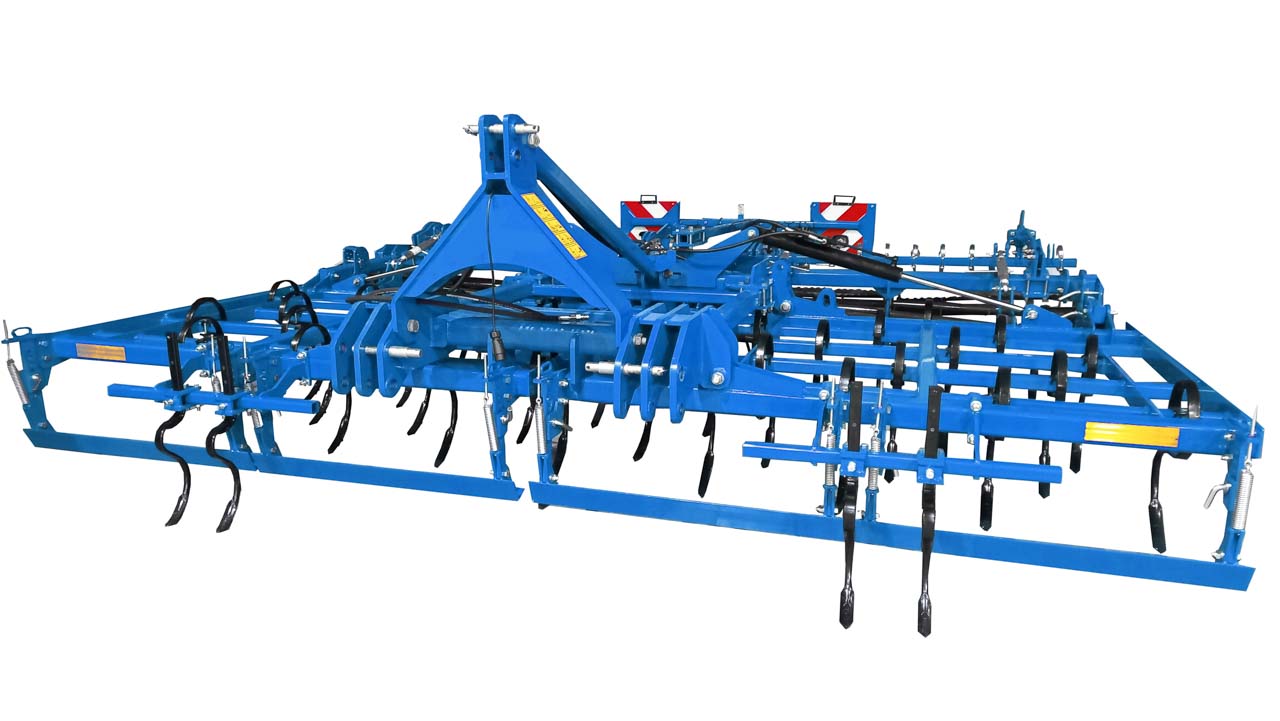

Seedbed combination EVO-5, 5 rows
| Code | working width [M] | number of tines [pcs.] | number of springs in the spring harrow [pcs.] | power demand [hp] | Weight depending on the equipment [KG] |
| 8514M | 4,0 | 40 | 26 | 90 | 1350-2050 |
| 8515M | 5,0 | 50 | 32 | 120 | 1500-2280 |
| 8516M | 6,,0 | 60 | 38 | 150 | 1650-2450 |
Standard equipment
• 3-point linkage cat. II and cat. III with coupling pins

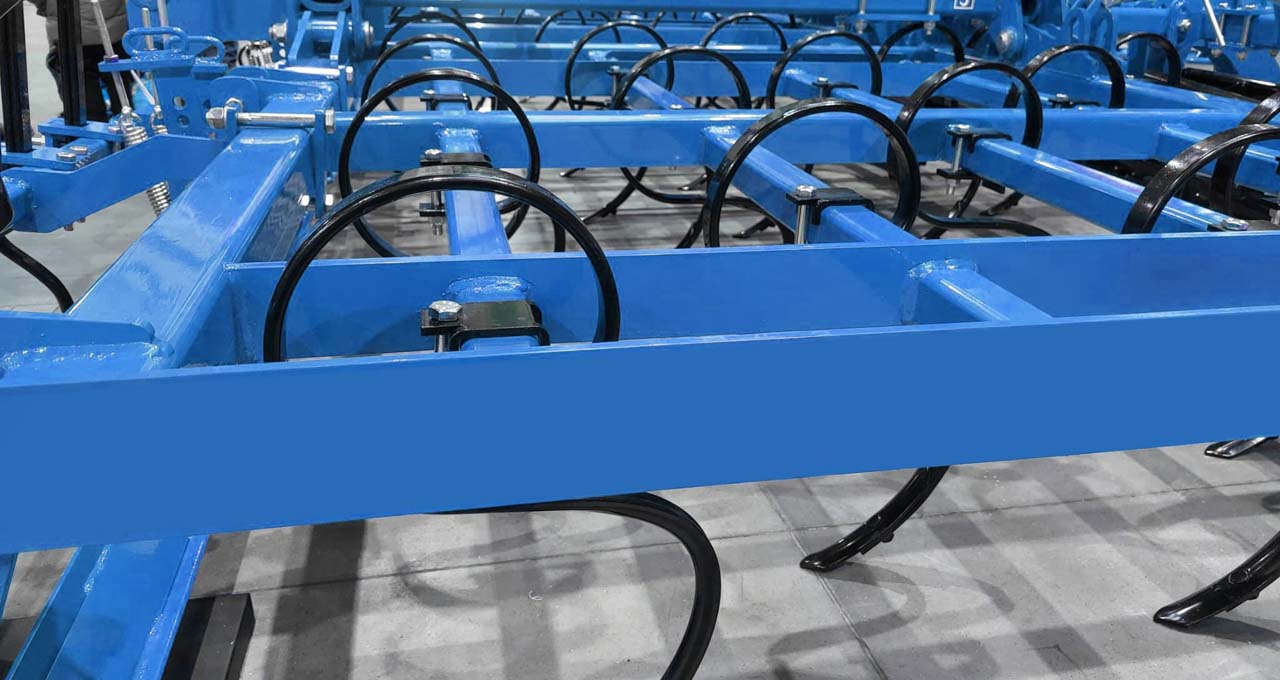

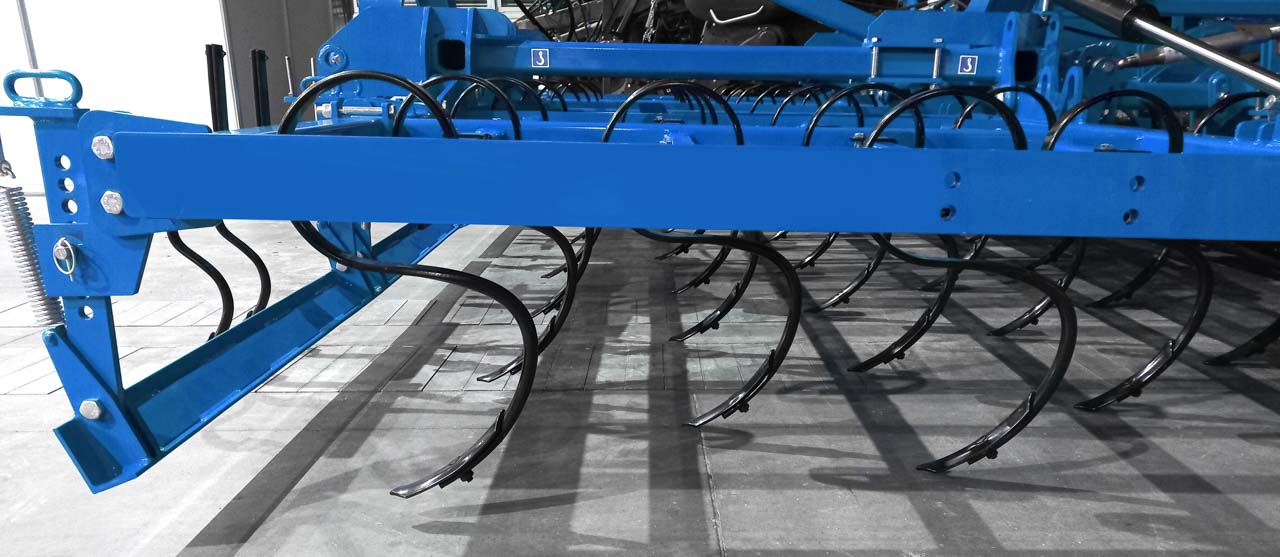

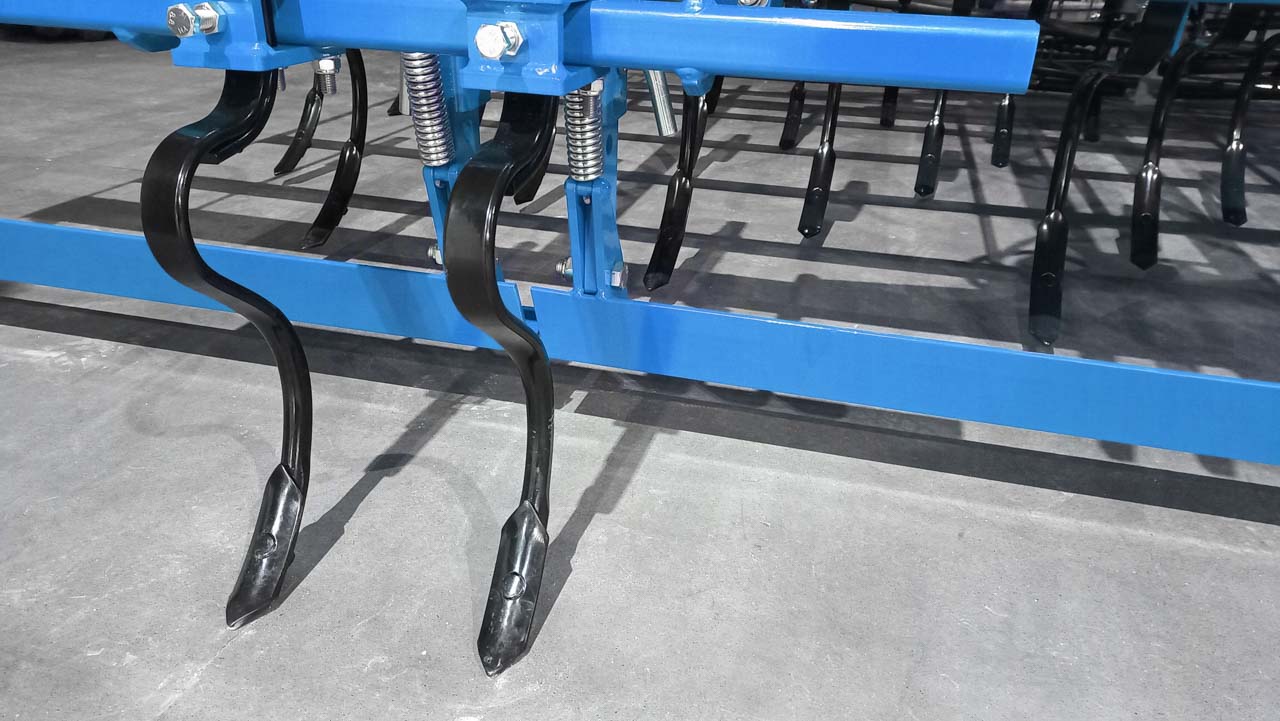

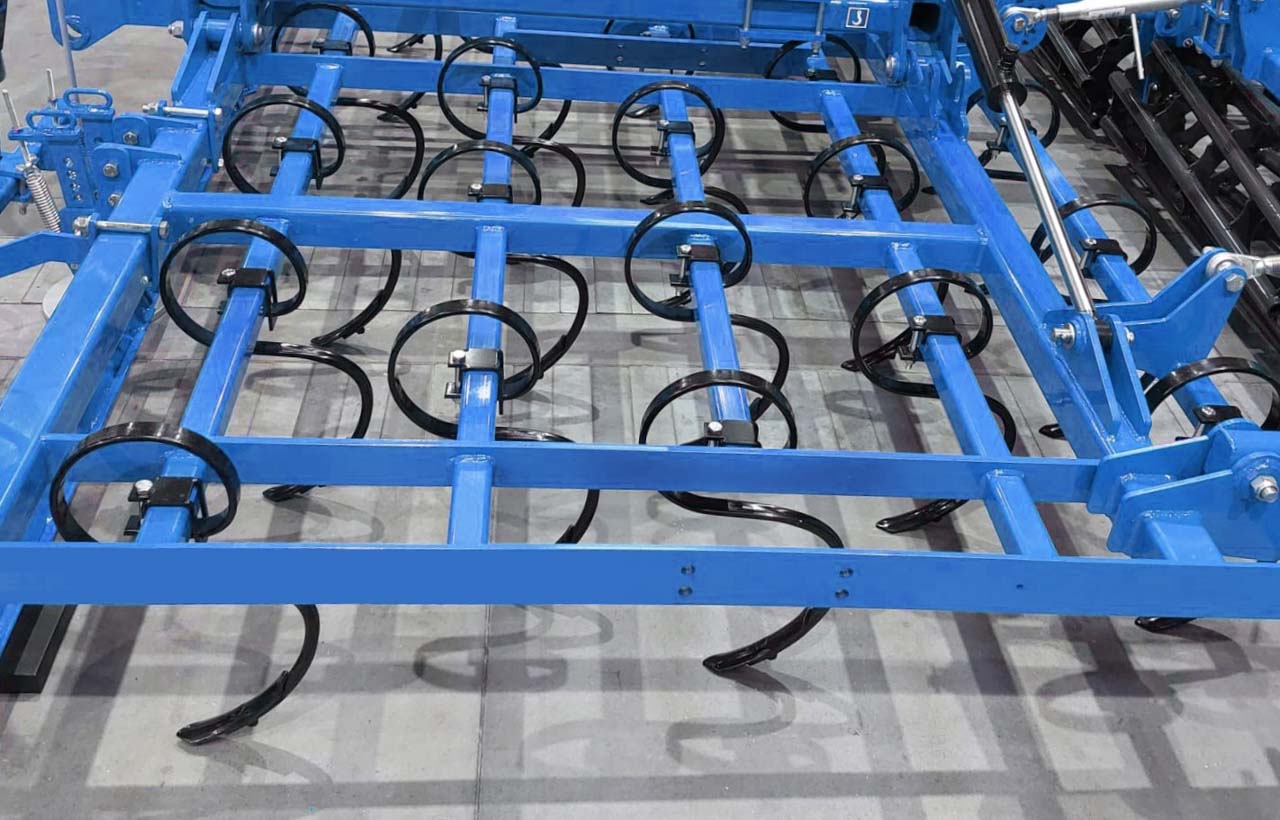

• 5 rows of cultivator tines, type S32x10 with straight coulter

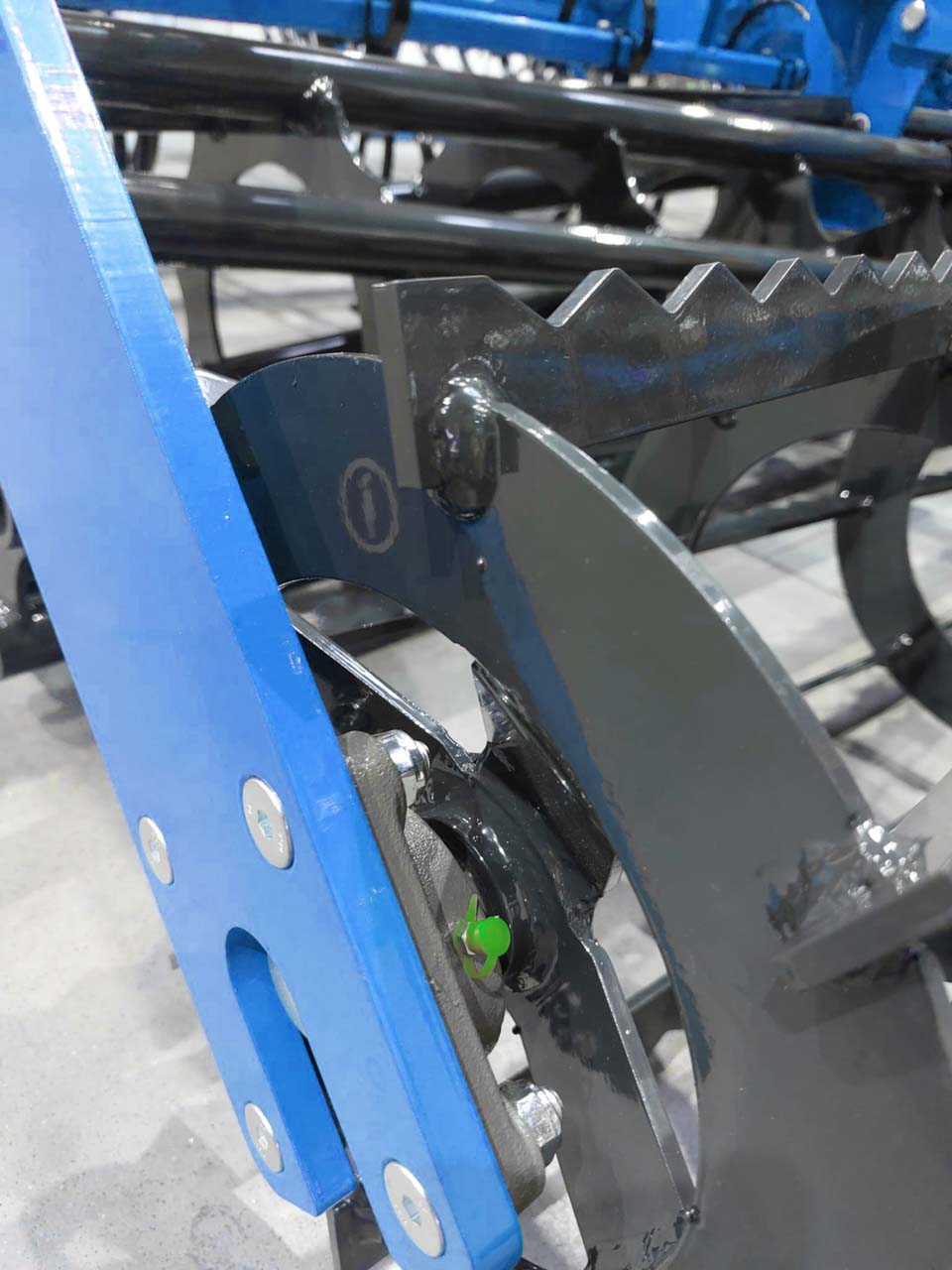

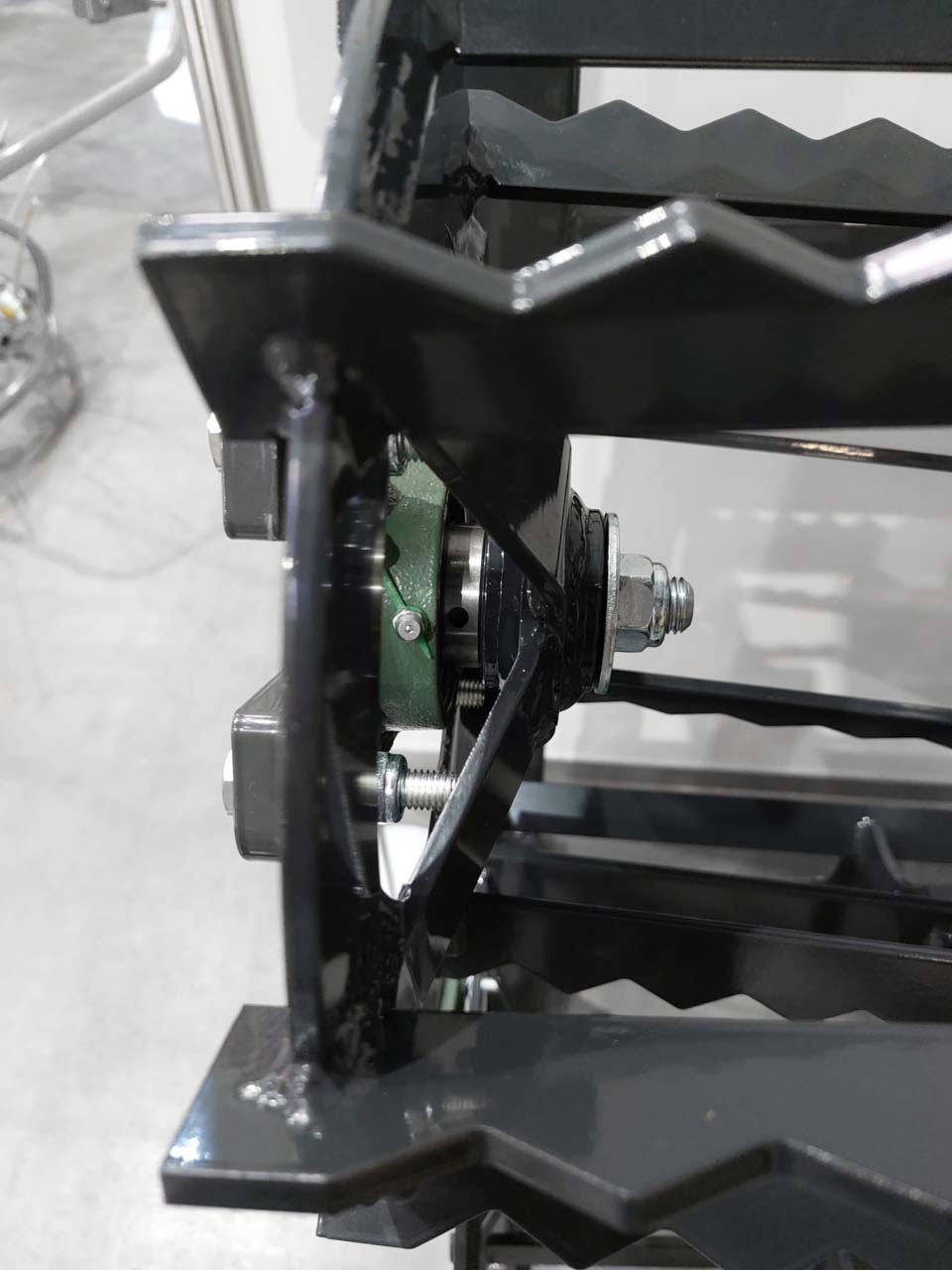

• String toothed roller Ø320mm
• Hydraulic folding
Optional equipment
• Single or tripple harrow springs with support wheels instead of the roller

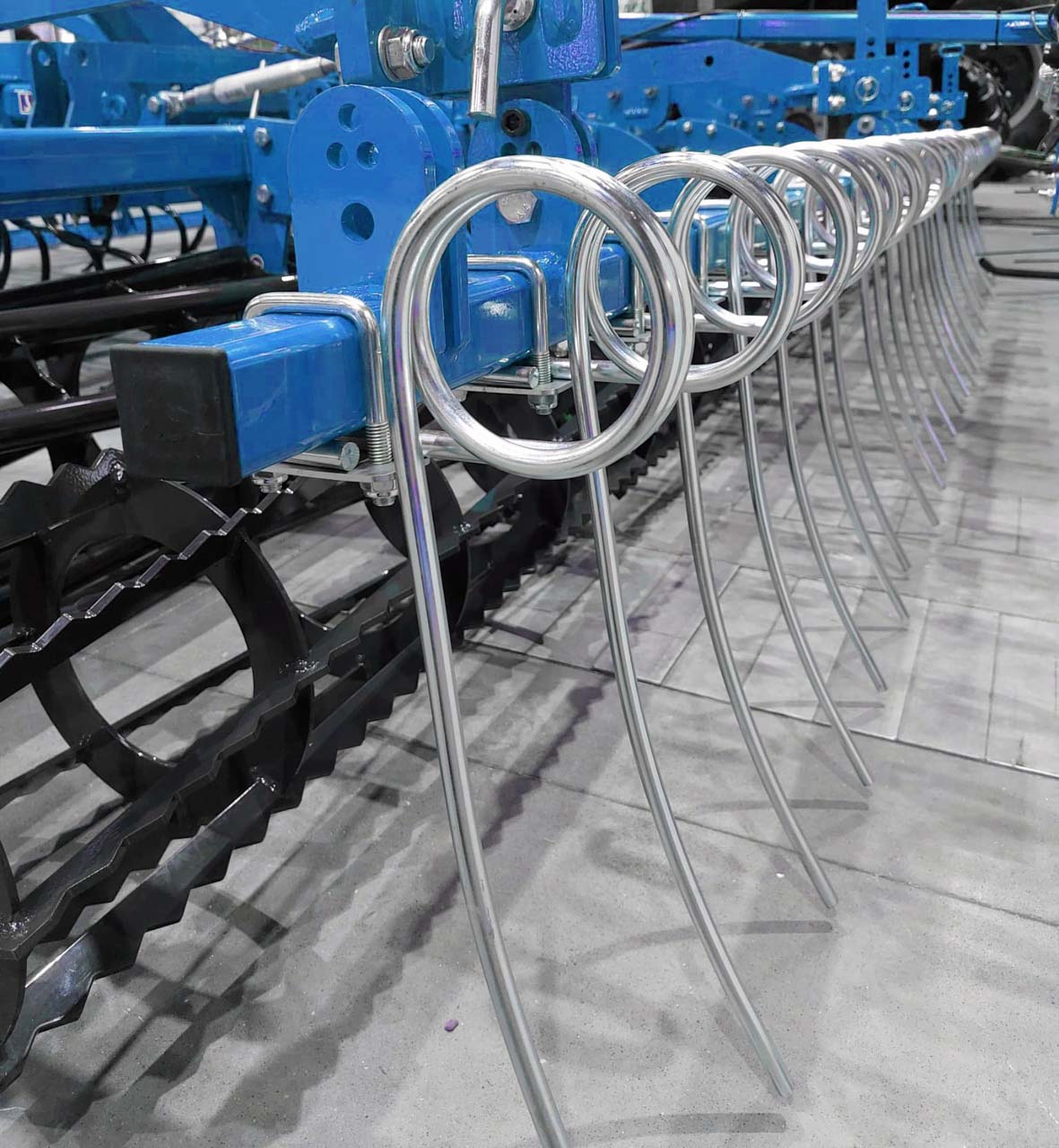

• Single harrow springs behind the roller

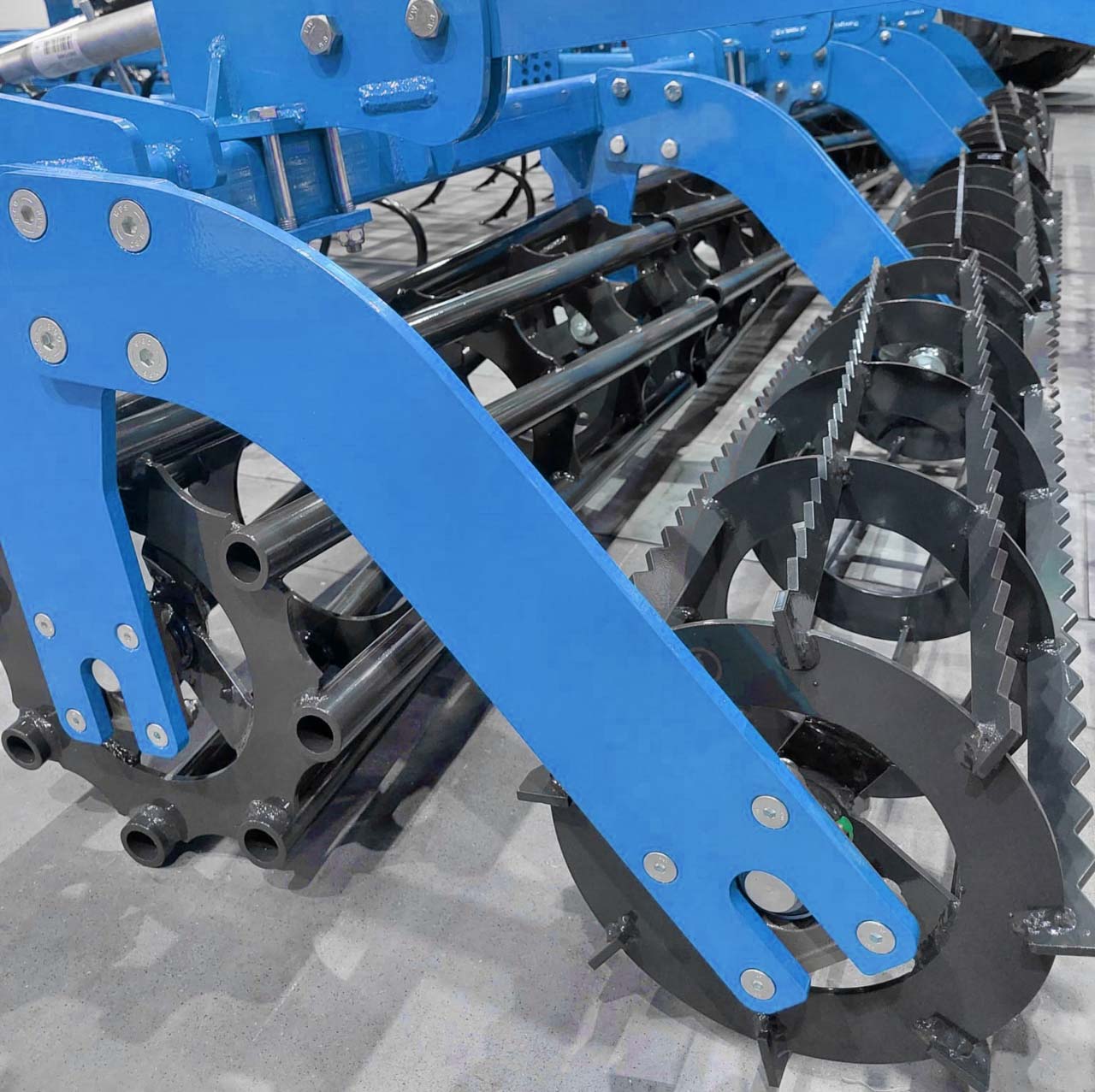

• Tandem roller (pipe roller Ø380mm + string toothed roller Ø320mm )
• Tandem roller (string toothed roller Ø320mm + string toothed roller Ø280mm )
• Tandem roller (string flat roller Ø380mm + string toothed roller Ø320mm )
• String toothed roller Ø380mm
• Pipe roller Ø380mm
• LED lights
• Front levelling bar
• Tractor track eradicators
• Straight tine 32×10
• Tine type S 45×12
• Straight tine 45×12
• Coulter duck foot for tine type S 45×12
Product number
8514M;8515M;8516M
Description
| Code | working width [M] | number of tines [pcs.] | number of springs in the spring harrow [pcs.] | power demand [hp] | Weight depending on the equipment [KG] |
| 8514M | 4,0 | 40 | 26 | 90 | 1350-2050 |
| 8515M | 5,0 | 50 | 32 | 120 | 1500-2280 |
| 8516M | 6,,0 | 60 | 38 | 150 | 1650-2450 |
