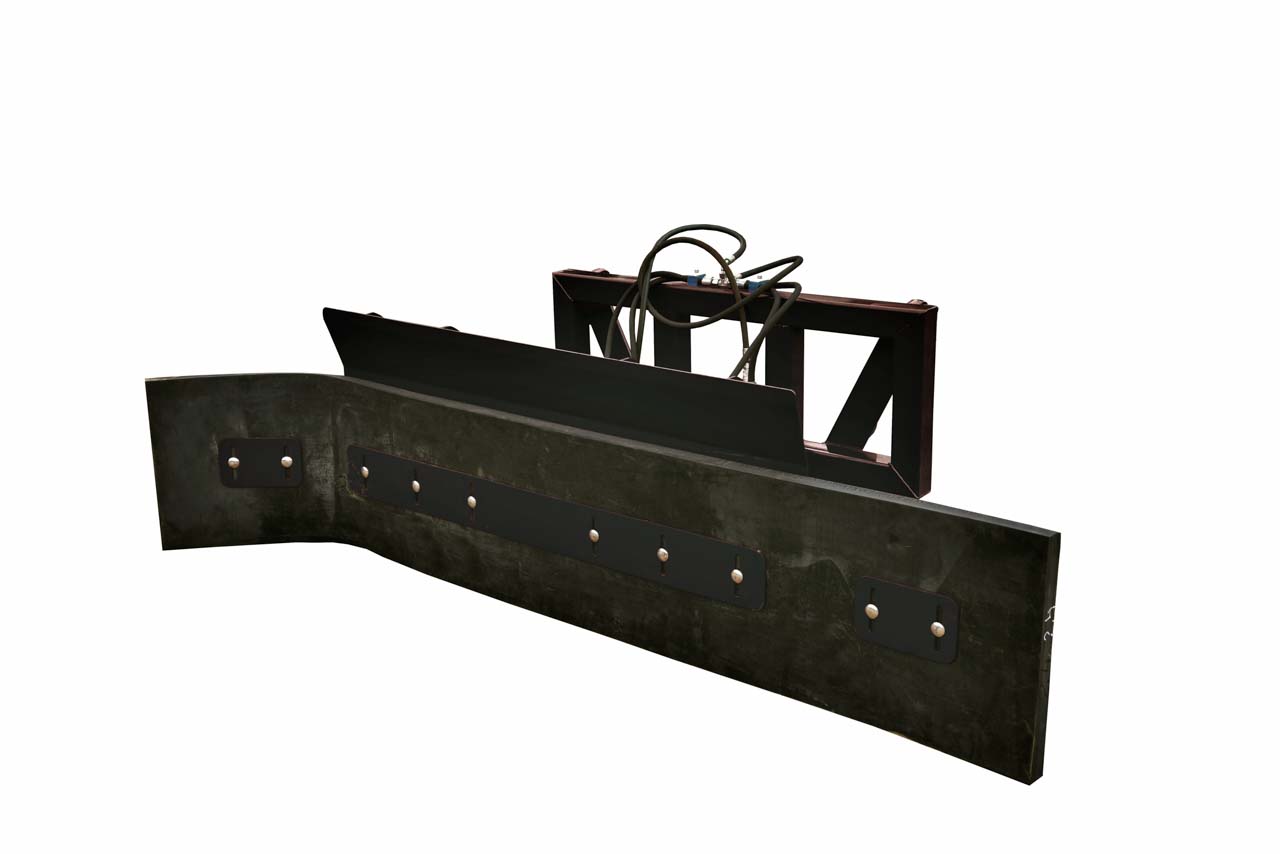

Slurry scraper with hydraulic adjustment of working angle
| Ref.No. | Working width [m] | Weight [kg] |
| 2110H | 1,5 | 230 |
| 2111H | 1,7 | 245 |
| 2112H | 2,0 | 265 |
| 2113H | 2,2 | 275 |
| 2116H | 2,4 | 280 |
| 2114H | 2,6 | 295 |
| 2115H | 3,0 | 315 |
Standard equipment
• Height: 651 mm, depth: 845 mm
• One-piece rubber blade: 470x40mm
• Sides: 320mm, angle 42°
• Hydraulic angle adjustment up to 50 °
• EURO mount
Optional equipment
• Other type of brackets
Product number
2110H 2111H 2112H 2113H 2116H 2114H 2115H
Description
| Ref.No. | Working width [m] | Weight [kg] |
| 2110H | 1,5 | 230 |
| 2111H | 1,7 | 245 |
| 2112H | 2,0 | 265 |
| 2113H | 2,2 | 275 |
| 2116H | 2,4 | 280 |
| 2114H | 2,6 | 295 |
| 2115H | 3,0 | 315 |
