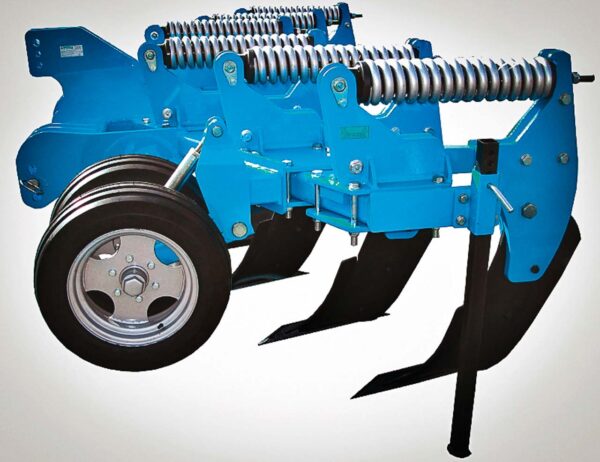

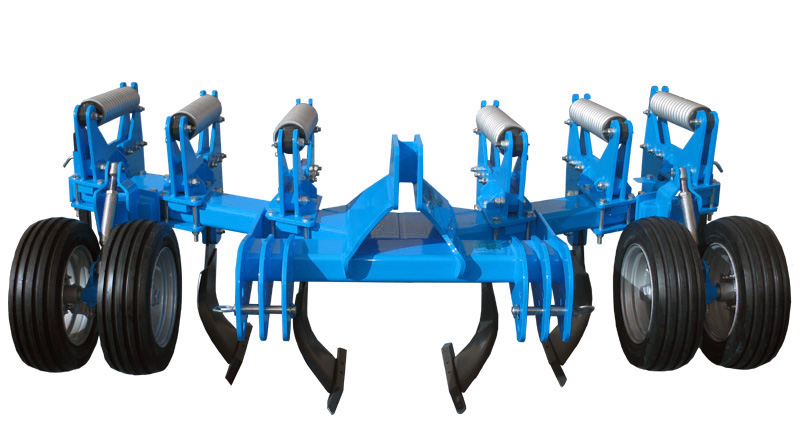

Subsoiler with possibility of tines spacing modification, Michel type tines
| Ref.No. | Working width [m] | Number of tines [pcs.] | Protection | Power demand [HP] | Weight [kg] |
| 8280 | 3,0 | 4 | Shear bolt | 110-140 | 800 |
| 8281 | 3,0 | 6 | Shear bolt | 130-150 | 1050 |
| 8282 | 4,0 | 8 | Shear bolt | 140-170 | 1300 |
| 8283 | 3,0 | 4 | Spring | 120-140 | 1350 |
| 8284 | 3,0 | 6 | Spring | 130-160 | 1600 |
| 8285 | 4,0 | 8 | Spring | 150-170 | 1900 |
| 8286 | 3,0 | 4 | Double spring | 120-140 | 1400 |
| 8287 | 3,0 | 6 | Double spring | 130-160 | 1650 |
| 8288 | 4,0 | 8 | Double spring | 150-170 | 1950 |
Standard equipment
• 3-point linkage cat. II and III for 4 and 6 tines, cat. III for 8 tines
• Frame construction enables to change spacing between the tines
• Clearance under the frame 90cm
• Michel type tines
• Shear bolt or spring protection
• Four supporting wheels 175/70 R13 with mechanical working depth adjustment
• Working depth up to 45cm
Optional equipment
• Two rows of discs Ø 510mm with rubber protection
• Spring protection (single springs)
• Spring protection (double springs)
• Tubular roller Ø 500mm
• Packer roller Ø 500mm
• V-ring roller Ø 500mm with scrapers
• FLEX roller Ø 500mm • Rubber roller Ø 500mm
