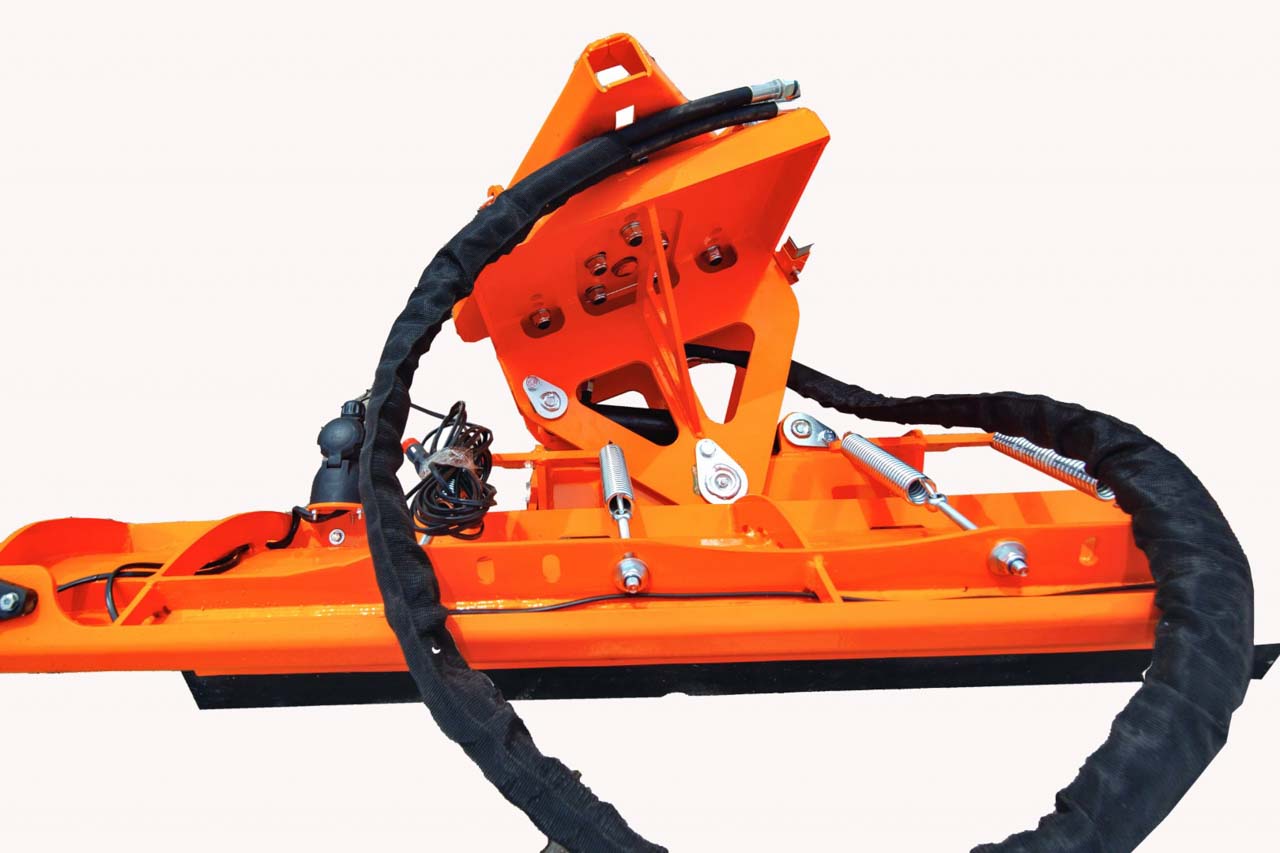

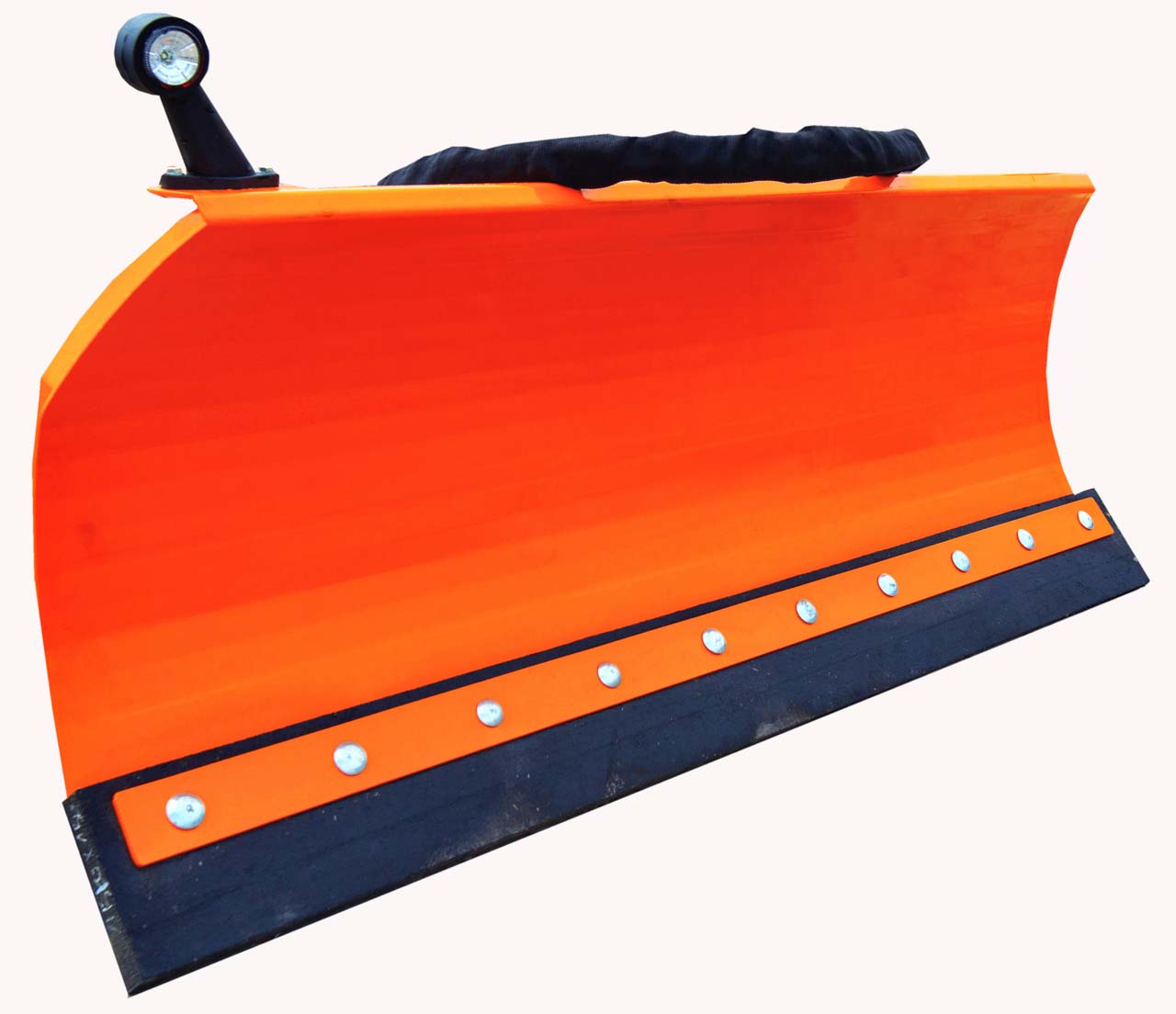

Super light straight snow plow
| Ref.No. | Working width [m] | Length/width/height [m] | Weight [kg] |
| 5100 | 1,2 | 0,58 / 1,2 / 0,59 | 120 |
| 5101 | 1,5 | 0,58 / 1,5 / 0,59 | 130 |
| 5102 | 1,8 | 0,58 / 1,8 / 0,59 | 140 |
| 5103 | 2,0 | 0,58 / 2,0 / 0,59 | 150 |
Standard equipment
• Communal triangle hitch
• Mouldboard height 56 cm
• Mouldboard turning angle (right and left) up to 30 °
• Mouldboard hydraulic control
• Side ground copying system at the hitch frame in the range of: lateral tilt +/- 5⁰
• Collision protection: tilting mouldboard (spring protection)
• 30 mm rubber strip
• Required number of hydraulic connections 2 (1 pair)
• LED lights
Optional equipment
• Skids
• Blade made of 150 x 16mm wear-resistant steel
• 150 x 25mm polyurethane blade
• 3-point linkage cat. 0
• Other type of mount
Product number
5100;5101;5102;5103
Description
| Ref.No. | Working width [m] | Length/width/height [m] | Weight [kg] |
| 5100 | 1,2 | 0,58 / 1,2 / 0,59 | 120 |
| 5101 | 1,5 | 0,58 / 1,5 / 0,59 | 130 |
| 5102 | 1,8 | 0,58 / 1,8 / 0,59 | 140 |
| 5103 | 2,0 | 0,58 / 2,0 / 0,59 | 150 |
