Sweeping machine

Standard equipment

• 3-point linkage, front or rear
• Forklift connection (rigid connection)
• Hydraulic drive (14 kW)

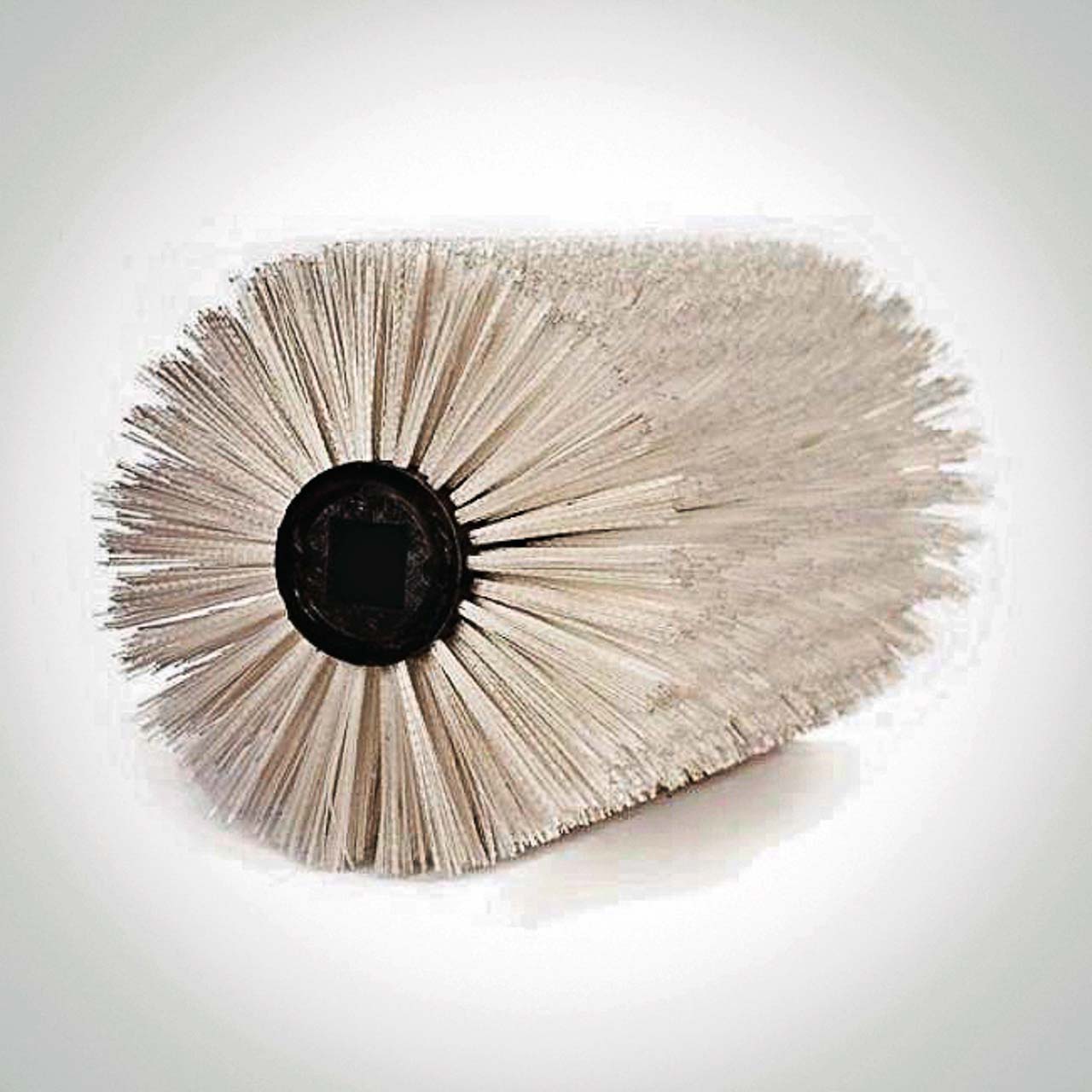

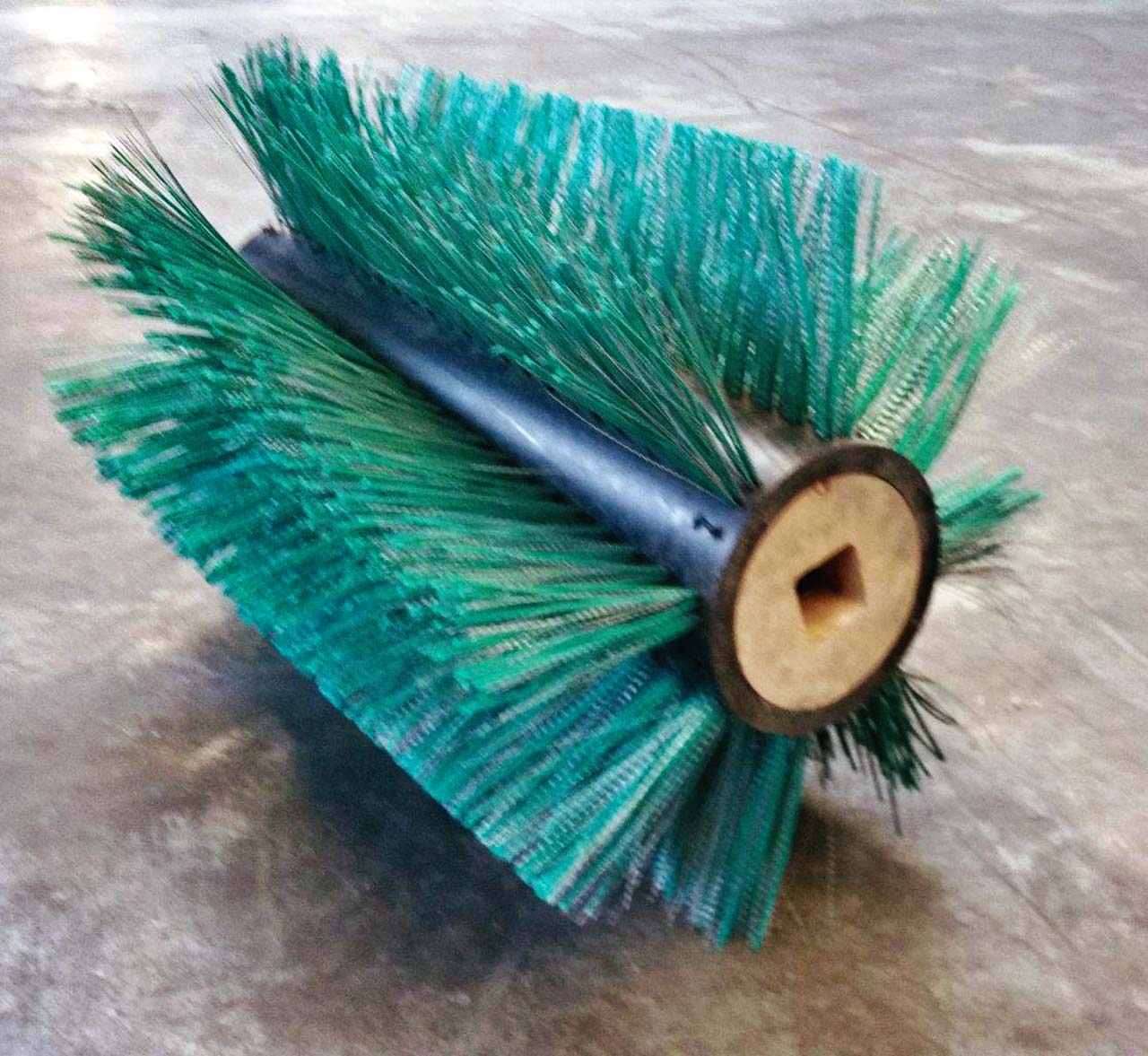

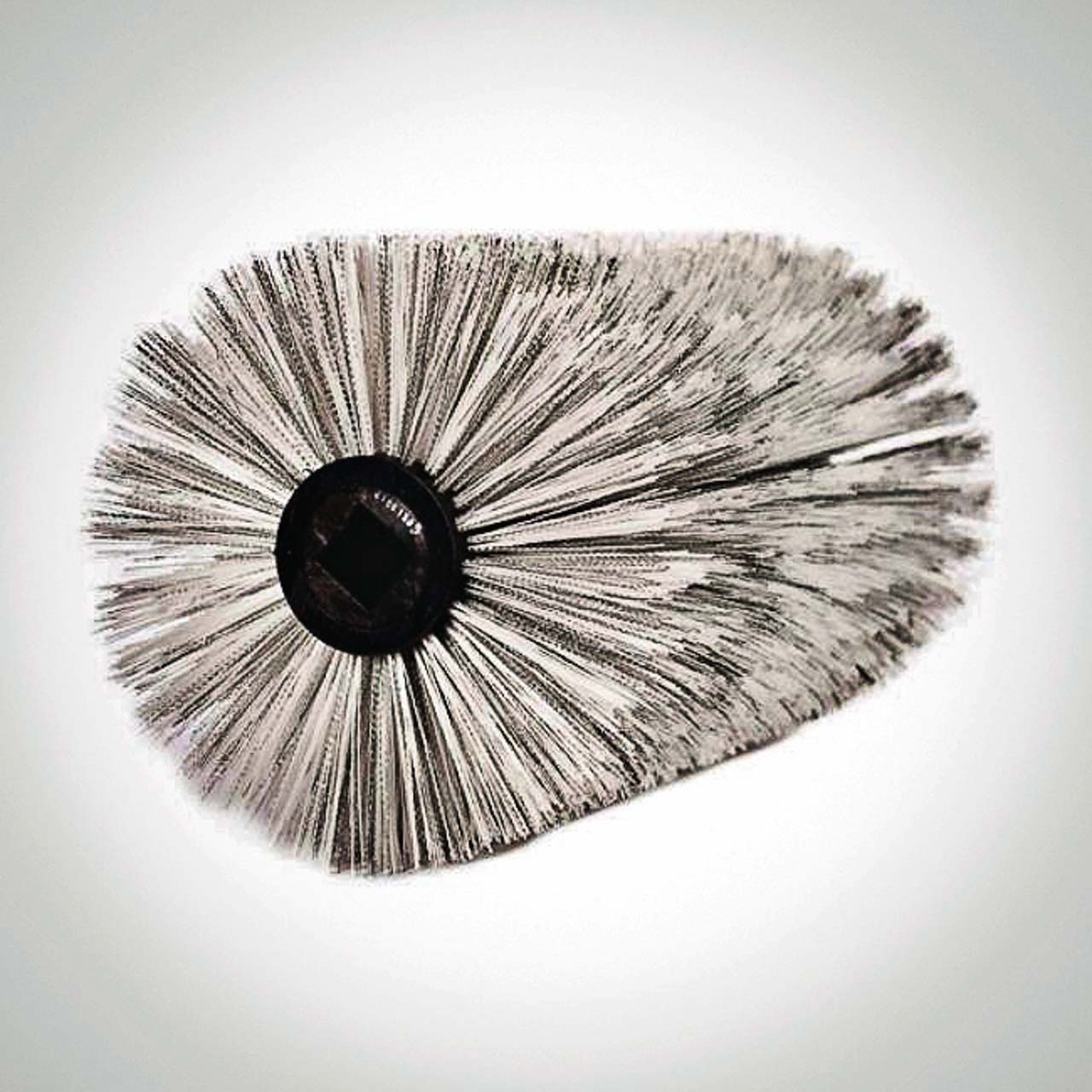

• Brush with a diameter of 510mm, 1 of 3 types (mix type in standard)
• PPN-brush (Polypropylene)
• Spiral brush mix for snow
• Two road wheels and one support wheel at the front ø 200×50 with mechanical height adjustment
• Ground contour copying system in two planes
• Diagonal sweeping position (provided – no garbage container)
• Mechanical sweeper angle adjustment

Optional equipment

• Garbage container with mechanical discharge using a cable from the vehicle
• Garbage container with hydraulic dump

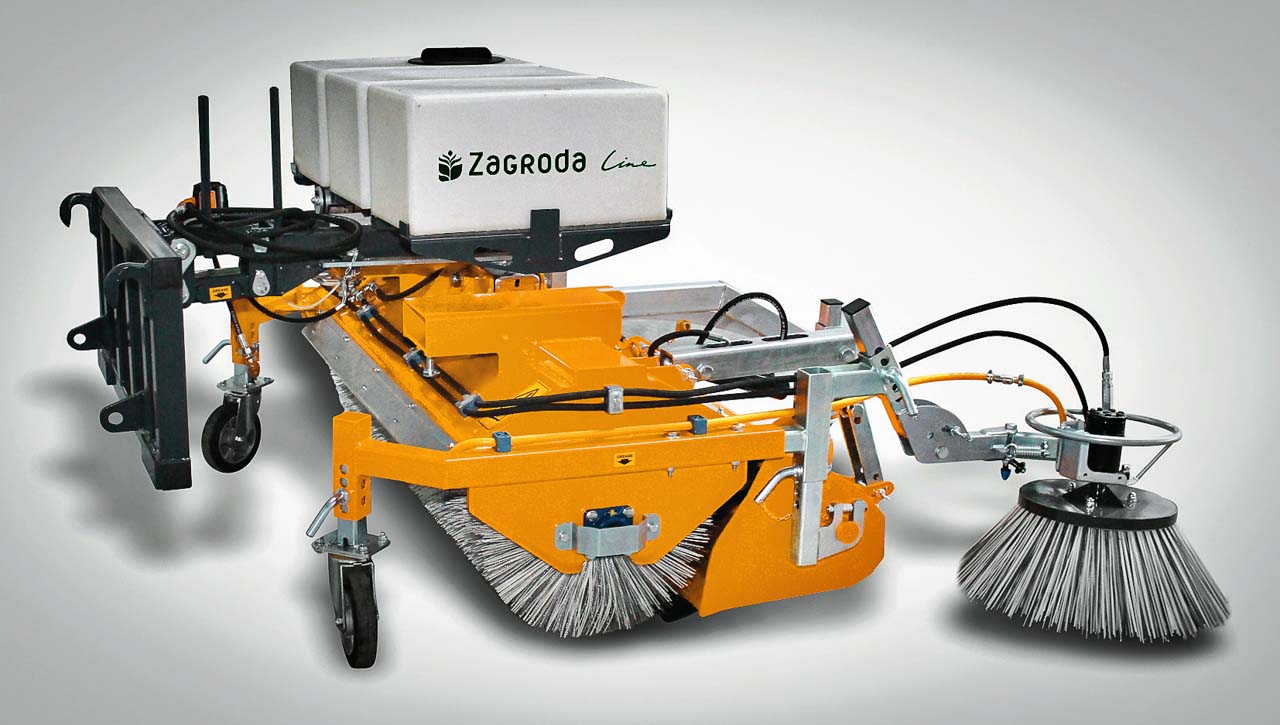

• Sprinkler system – consists of: tank with a capacity of 175l with external filter, conveying pump / vehicle powered installation: 12 (24v), rod with flat nozzles

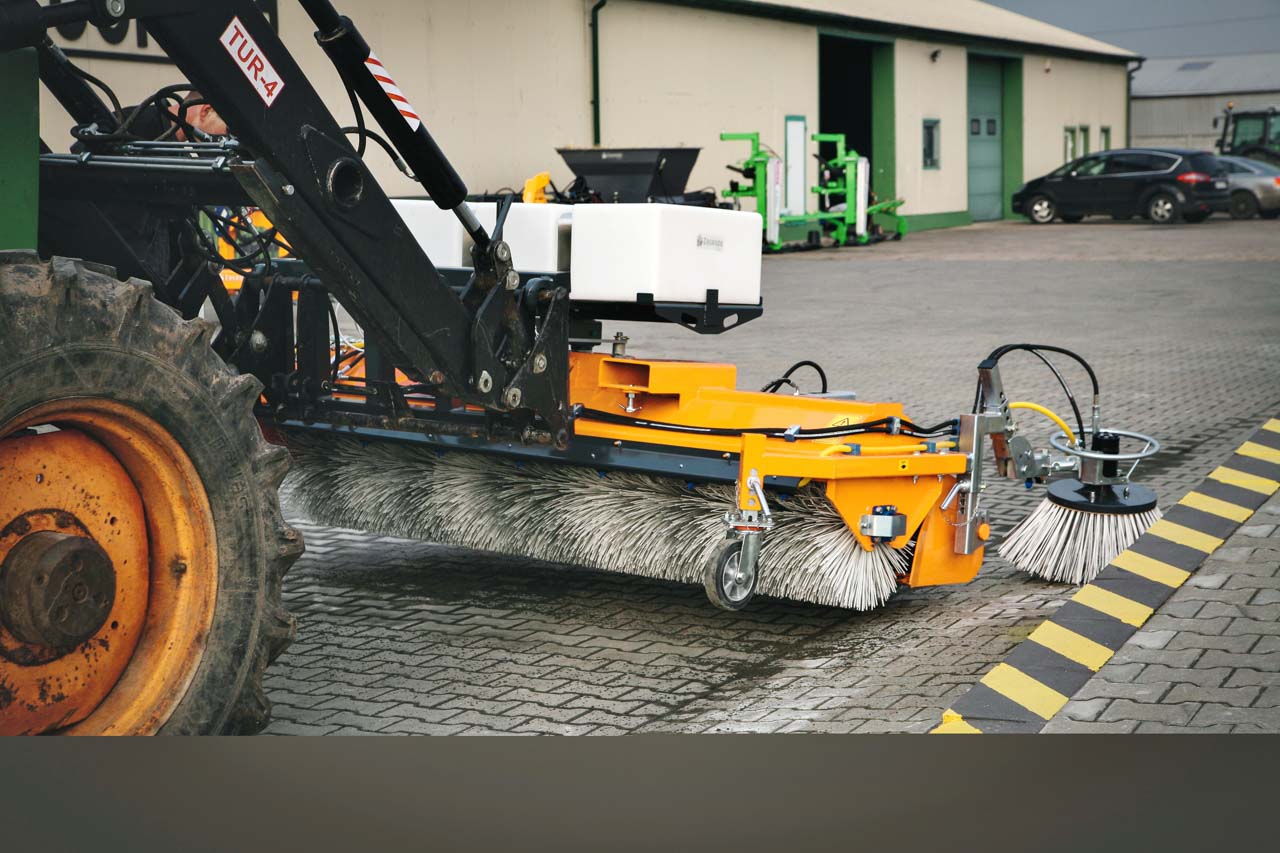

• Rotary side brush in three types to choose from: mix, ppn or metal type (can be installed on the right or left side or on both sides), the side brush drive installation is equipped with a shut-off valve enabling it to be switched off without disassembly
• Other types of linkage for wheel loaders possible: euro, gehl, jcb, weidemann, thaler, bobcat, schaffer etc.
• Hydraulic working angle adjustment, allowing sweeping without leaving the vehicle
   Attention !!! additional hydraulic section required
• Pressure relief valve for loaders with a hydraulic pressure greater than 16mpa
• Oil flow regulator for chargers with a flow rate greater than 60 l /min.
• Reinforced hydraulics for wheel loaders with high oil flow

Product number
1799;1800;1801;1802
