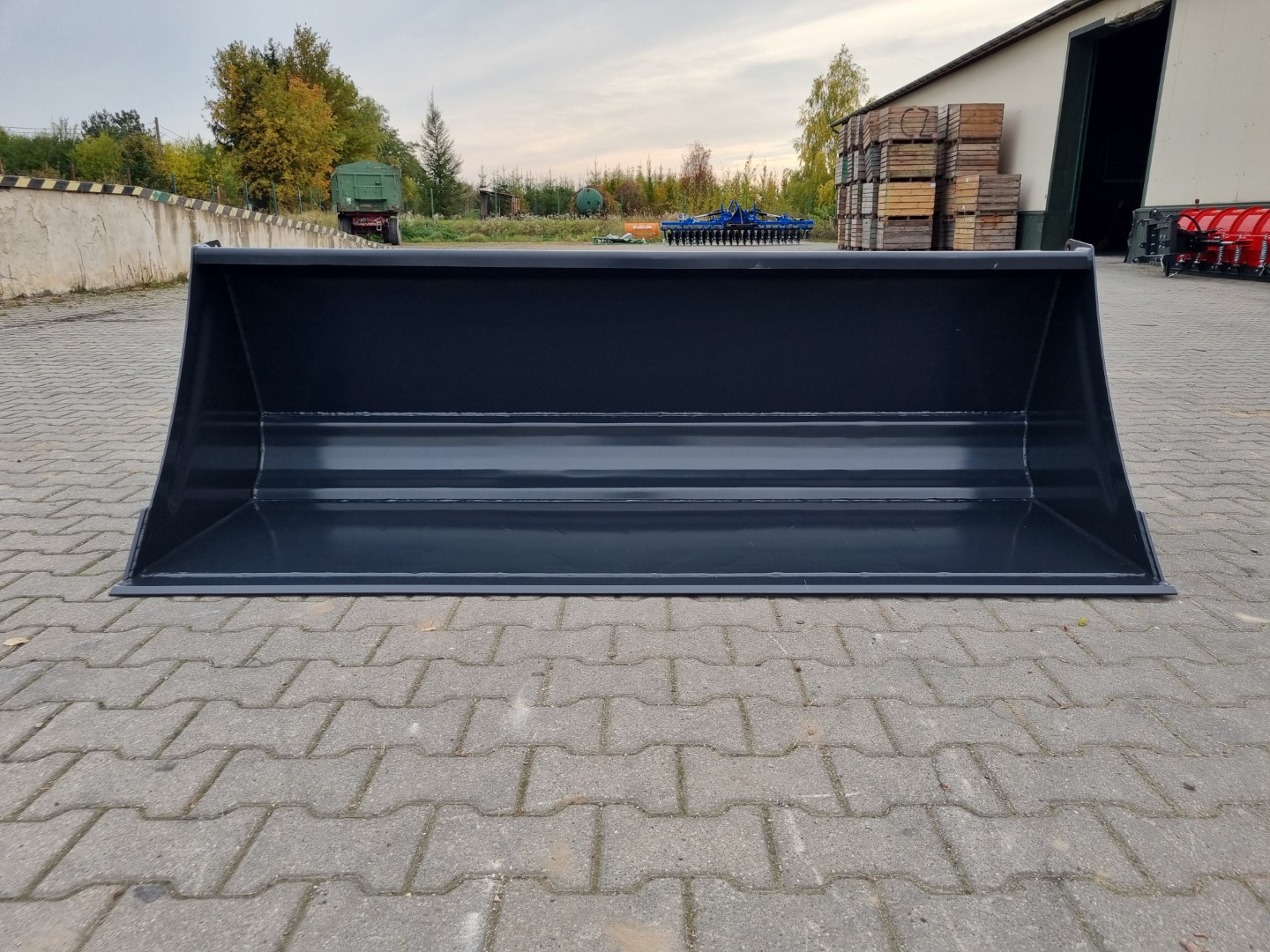

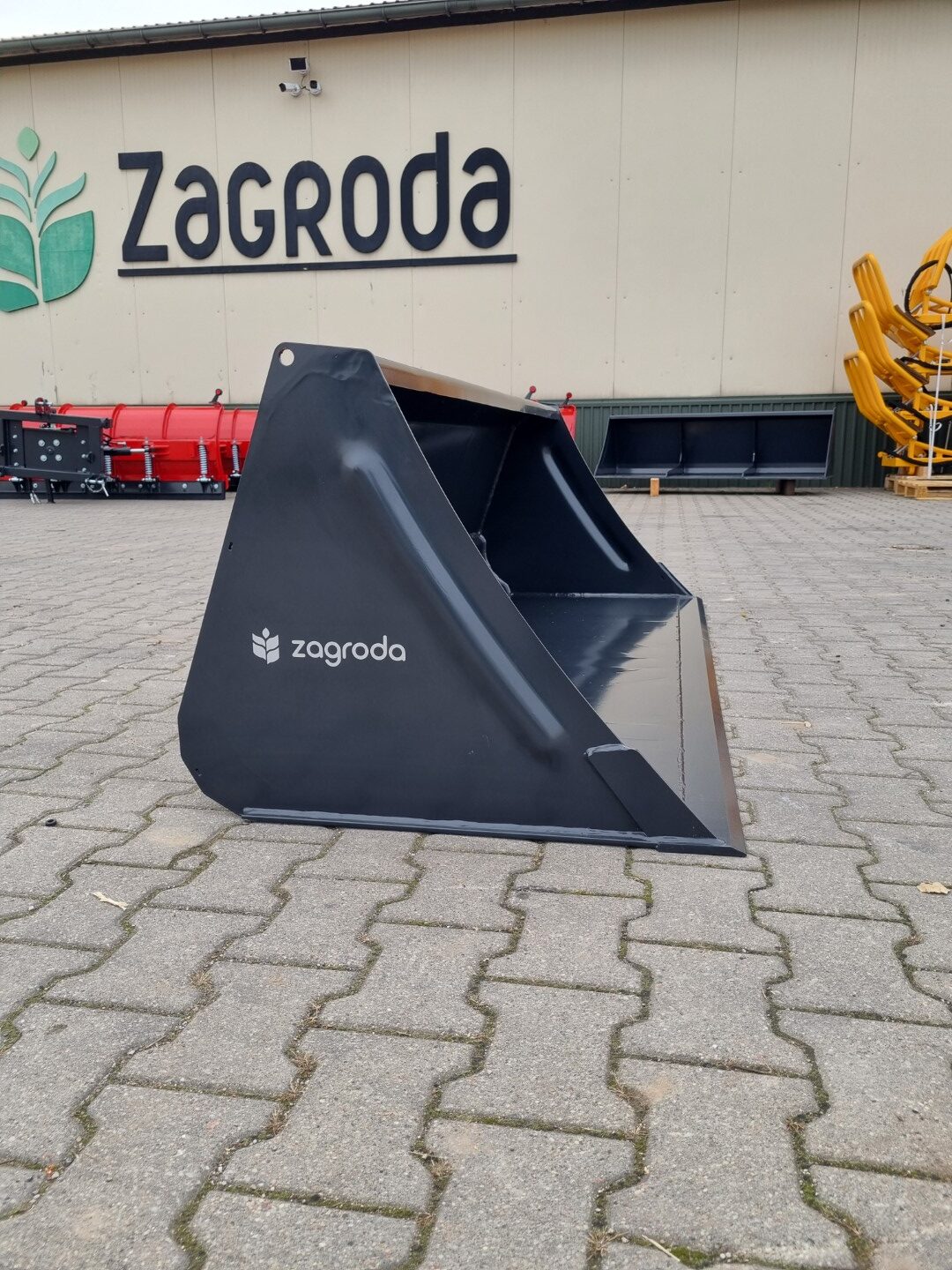

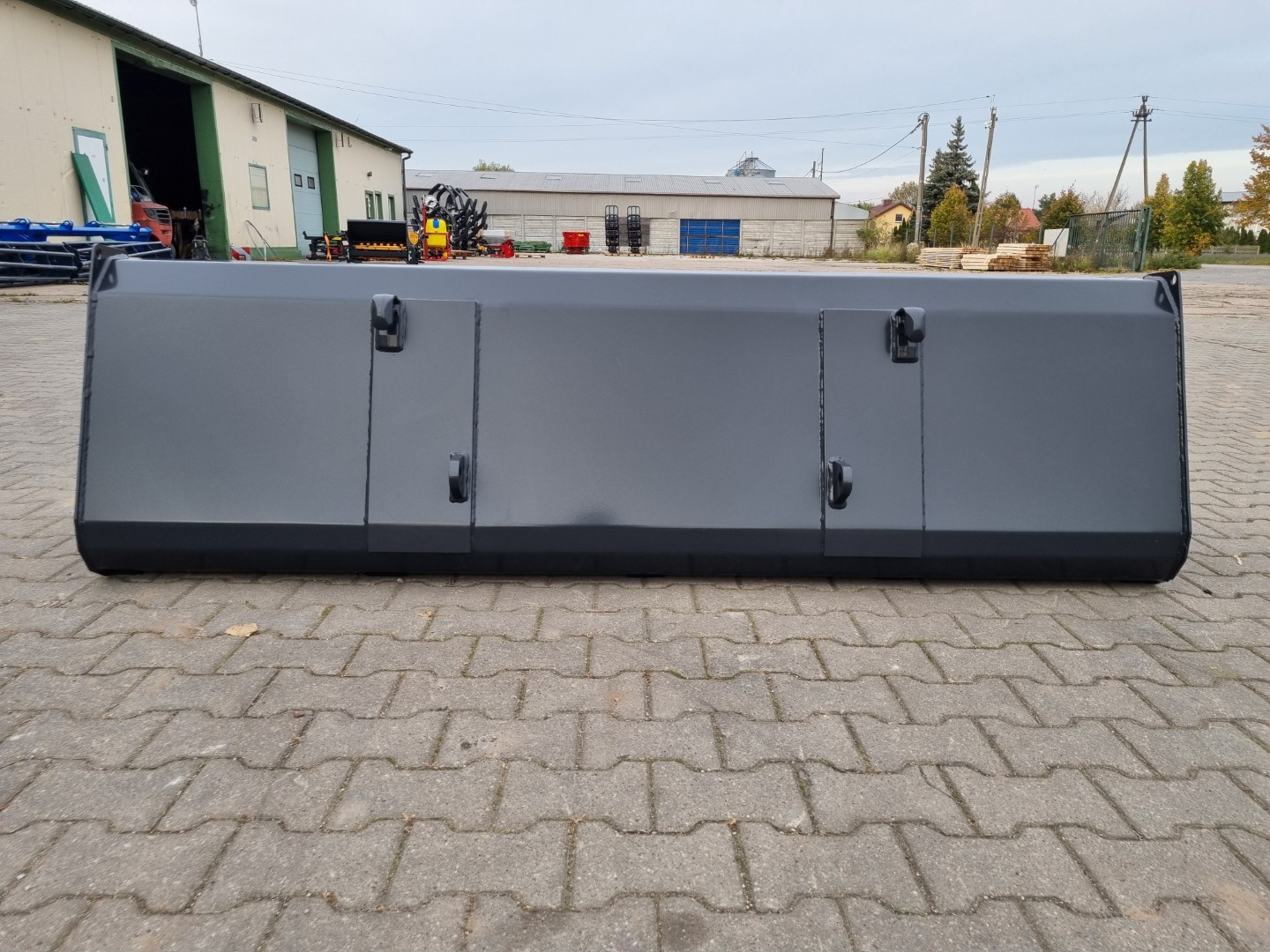

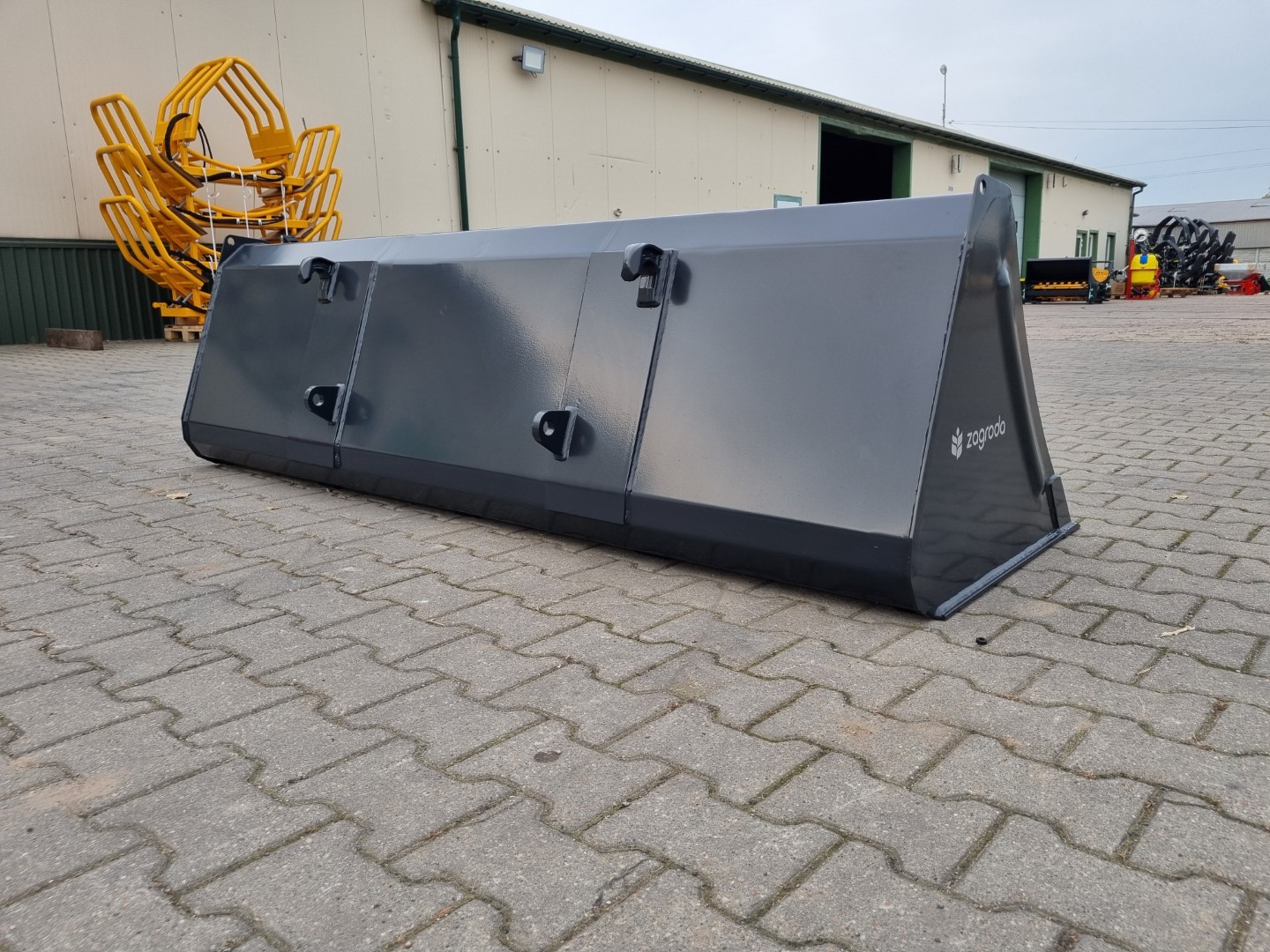

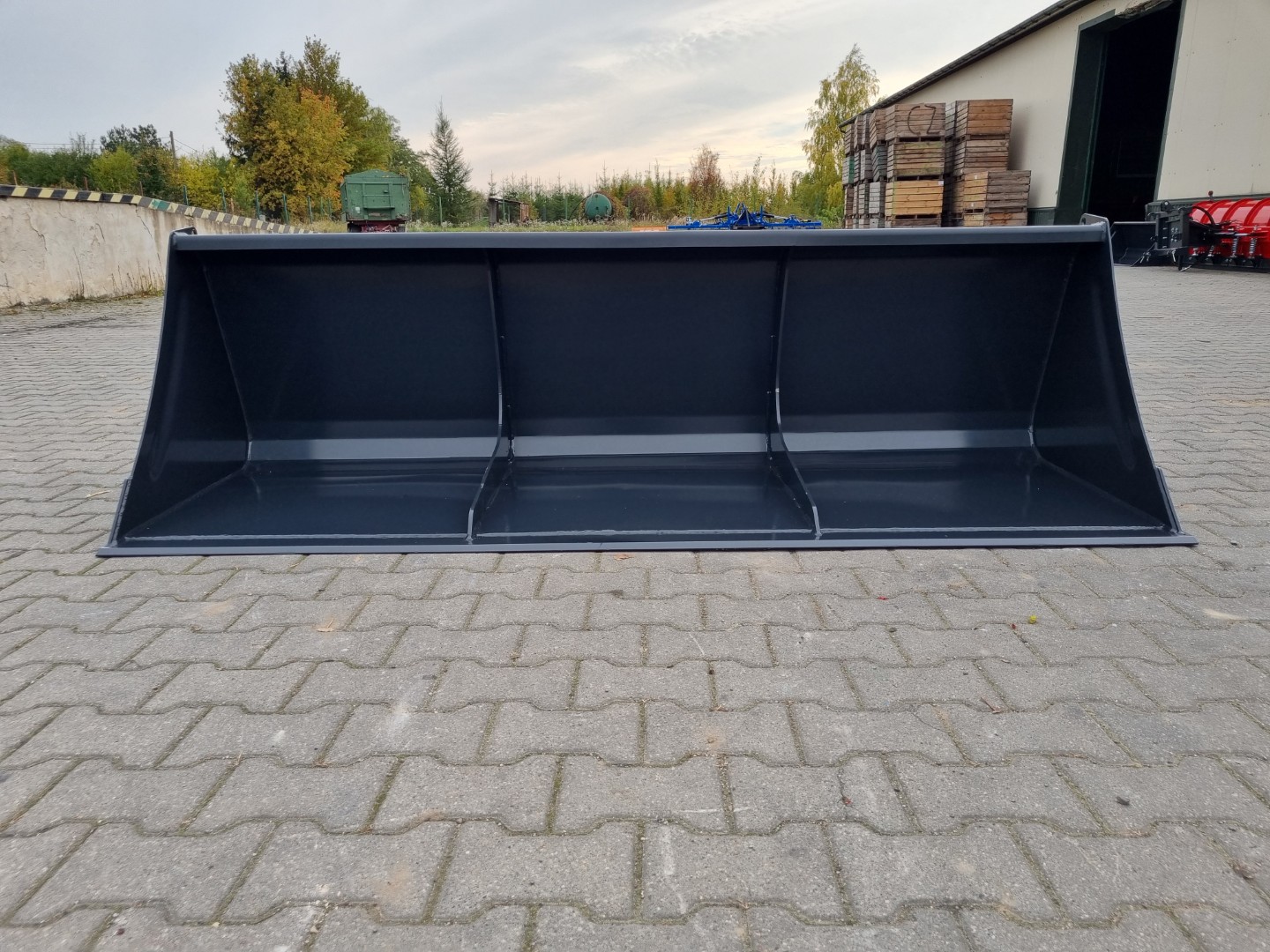

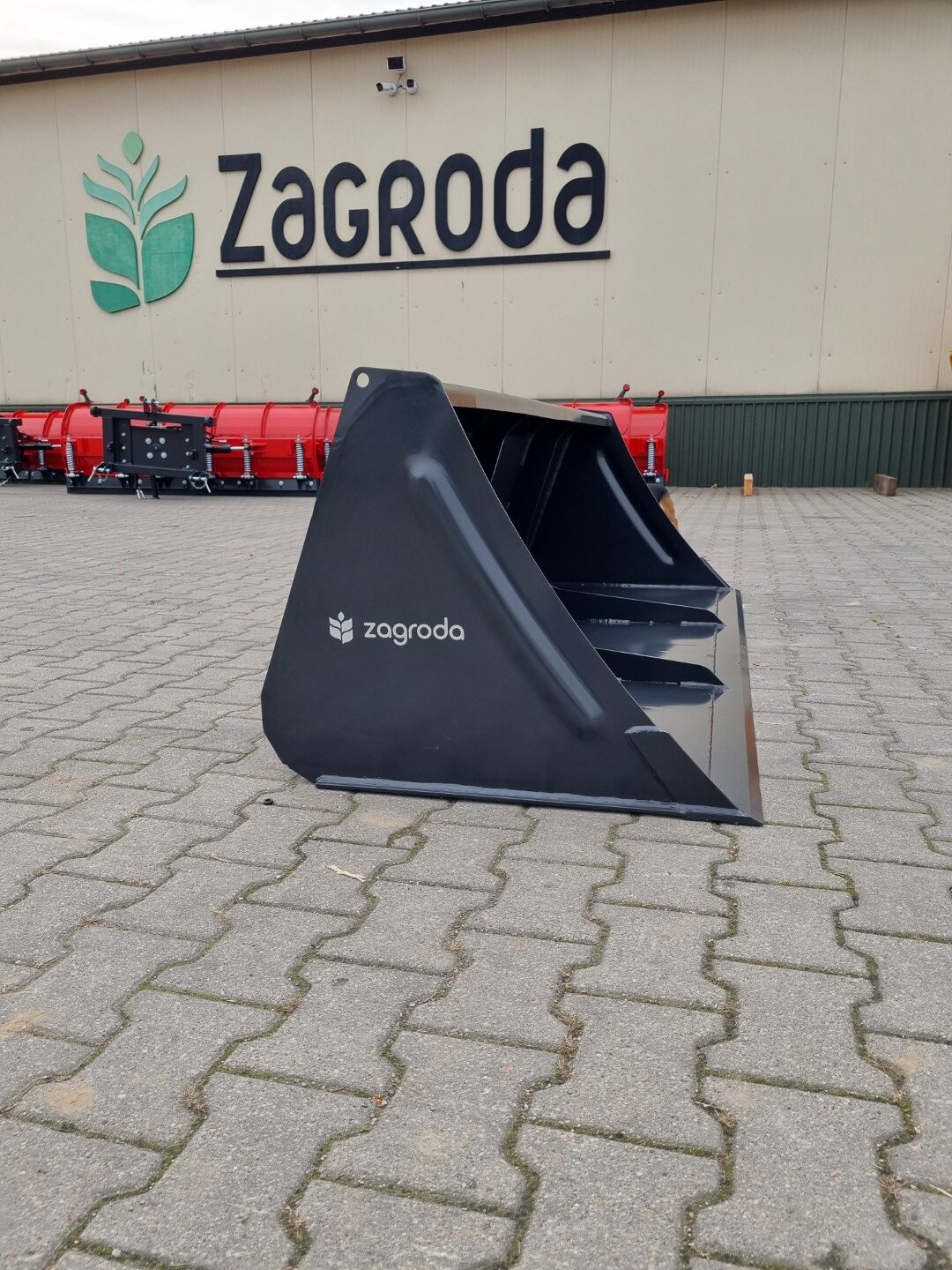

Universal bucket standard
| Ref.No. Version G – version with an insert | Ref.No. Version with a reinforcing rib | Working width [m] | Capacity [m3] | Weight [kg] |
| 2008GA | 2008A | 1,4 | 0,39 | 145 |
| 2002GA | 2002A | 1,5 | 0,42 | 150 |
| 2005GA | 2005A | 1,6 | 0,45 | 160 |
| 2003GA | 2003A | 1,8 | 0,50 | 180 |
| 2004GA | 2004A | 2,0 | 0,56 | 190 |
| 2006GA | 2006A | 2,2 | 0,62 | 205 |
| 2007GA | 2007A | 2,4 | 0,67 | 220 |
Standard equipment

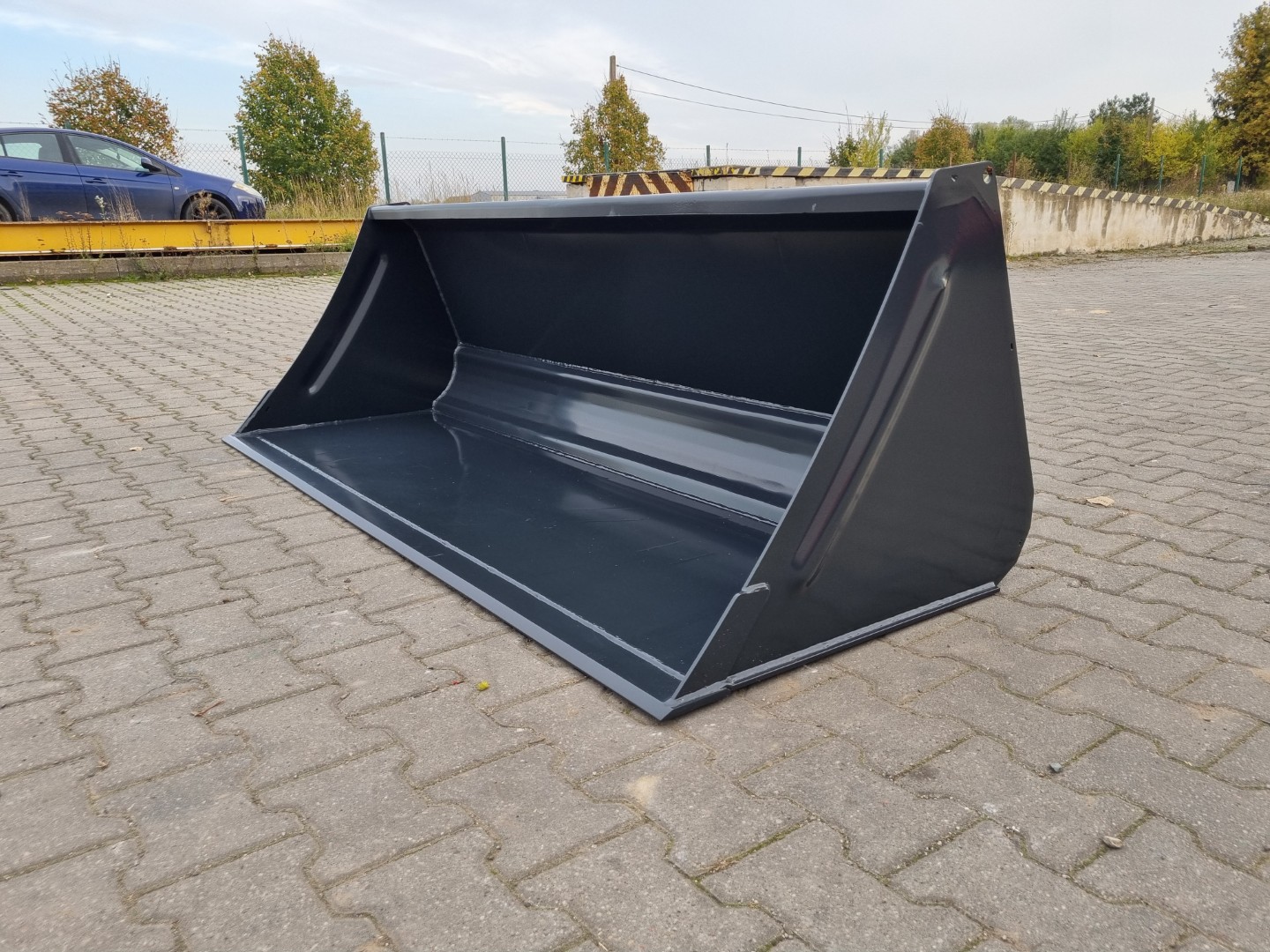

• Standard version with a reinforcing rib, sheet thickness: sides 5mm, body: 4mm, height: 655mm; depth: 785mm

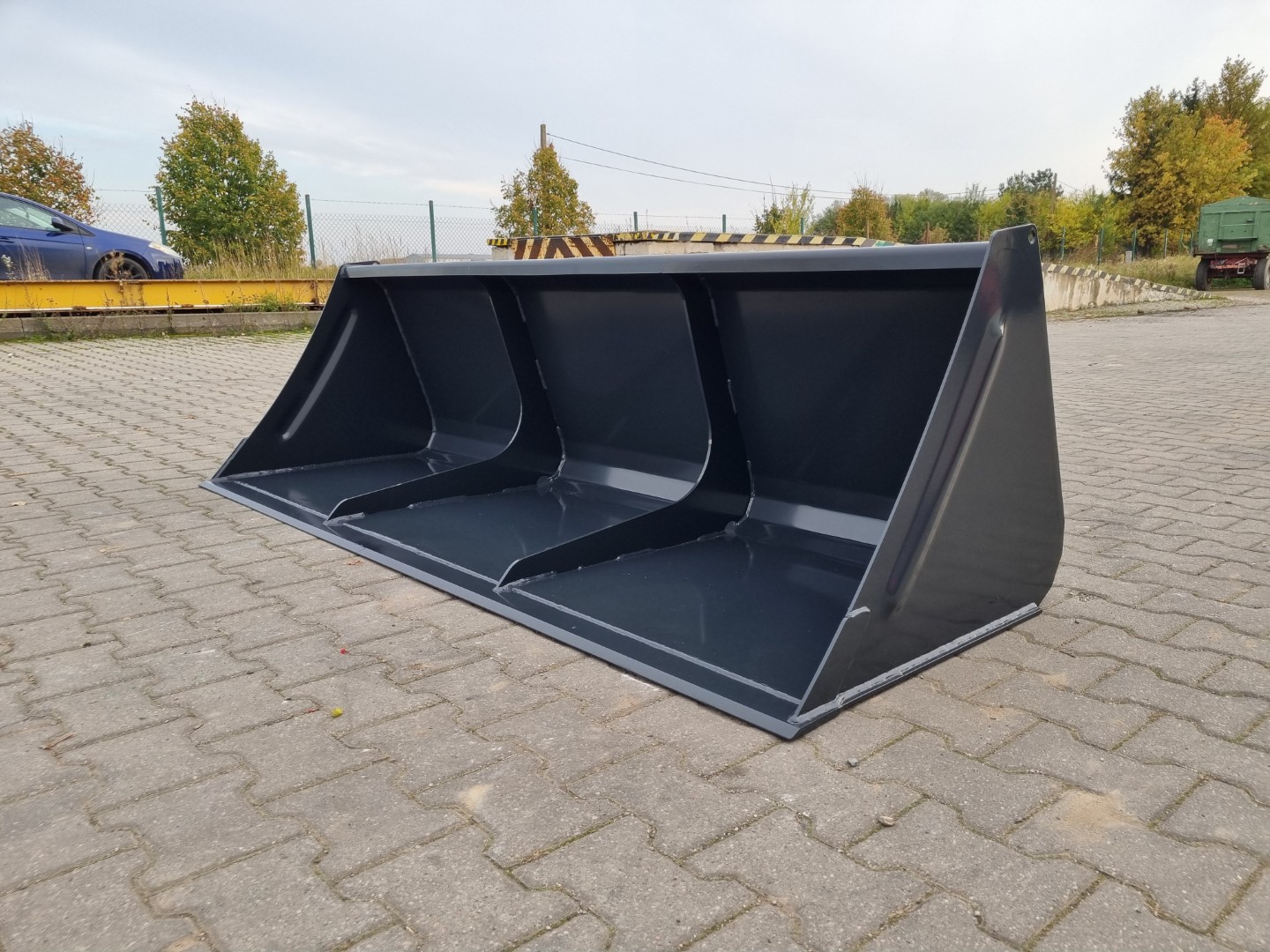

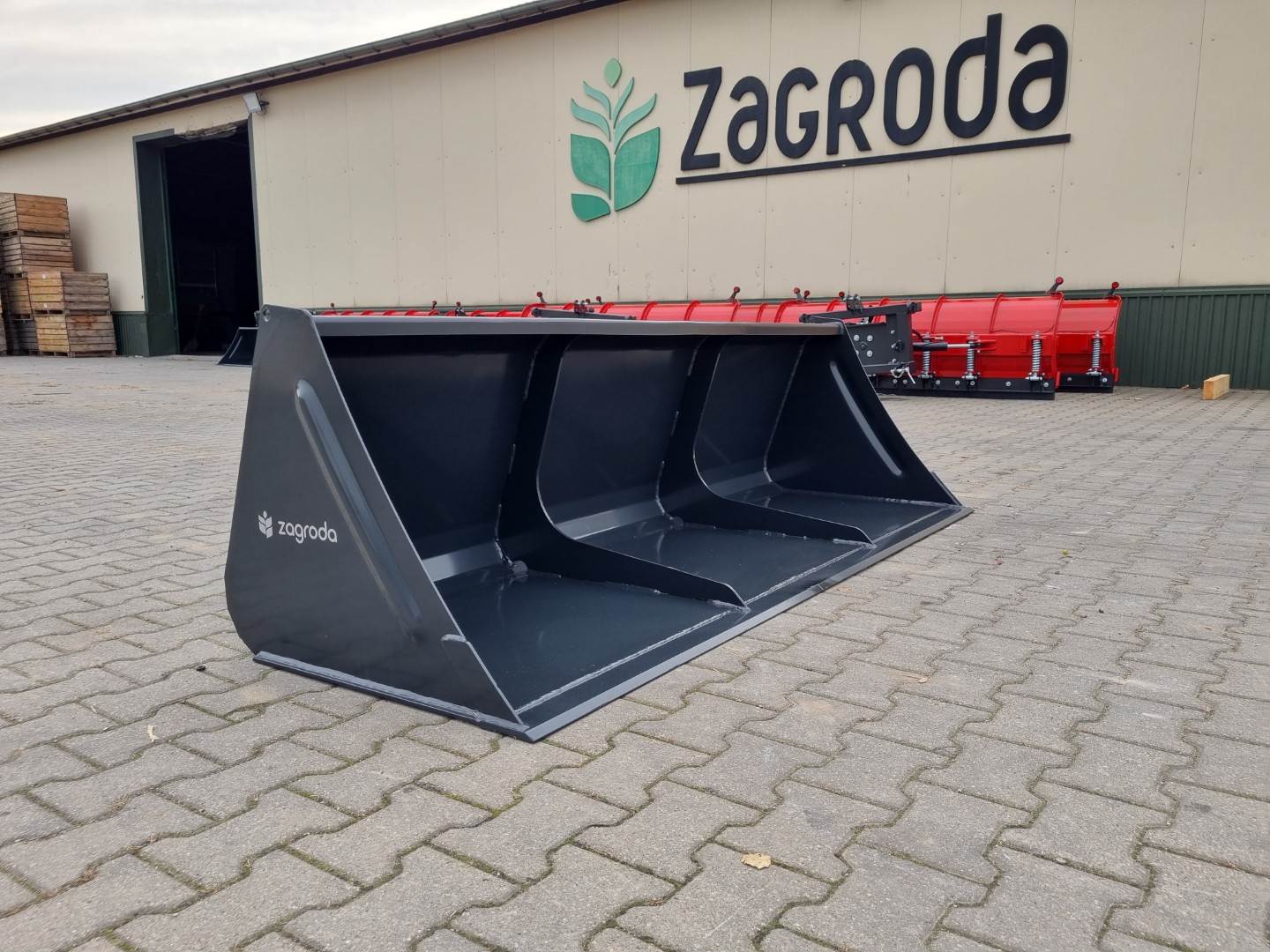

• G version with an insert, sheet thickness: sides 5 mm, body: 4mm, height: 655mm; depth: 785mm
• Bottom with flat bar reinforcement

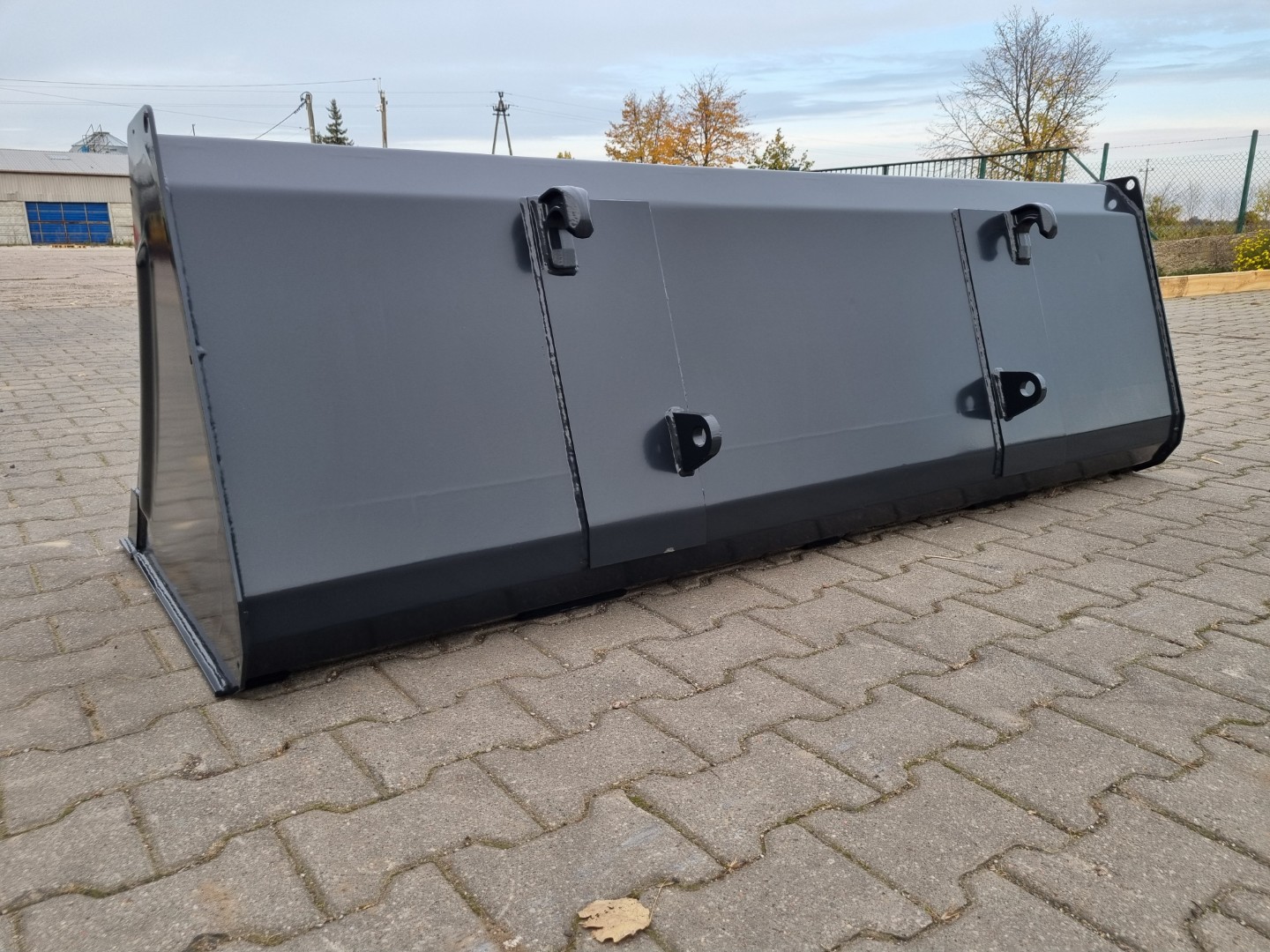

• Brackets mounting reinforced with flat bar
• Blade 110x12mm (500hb)

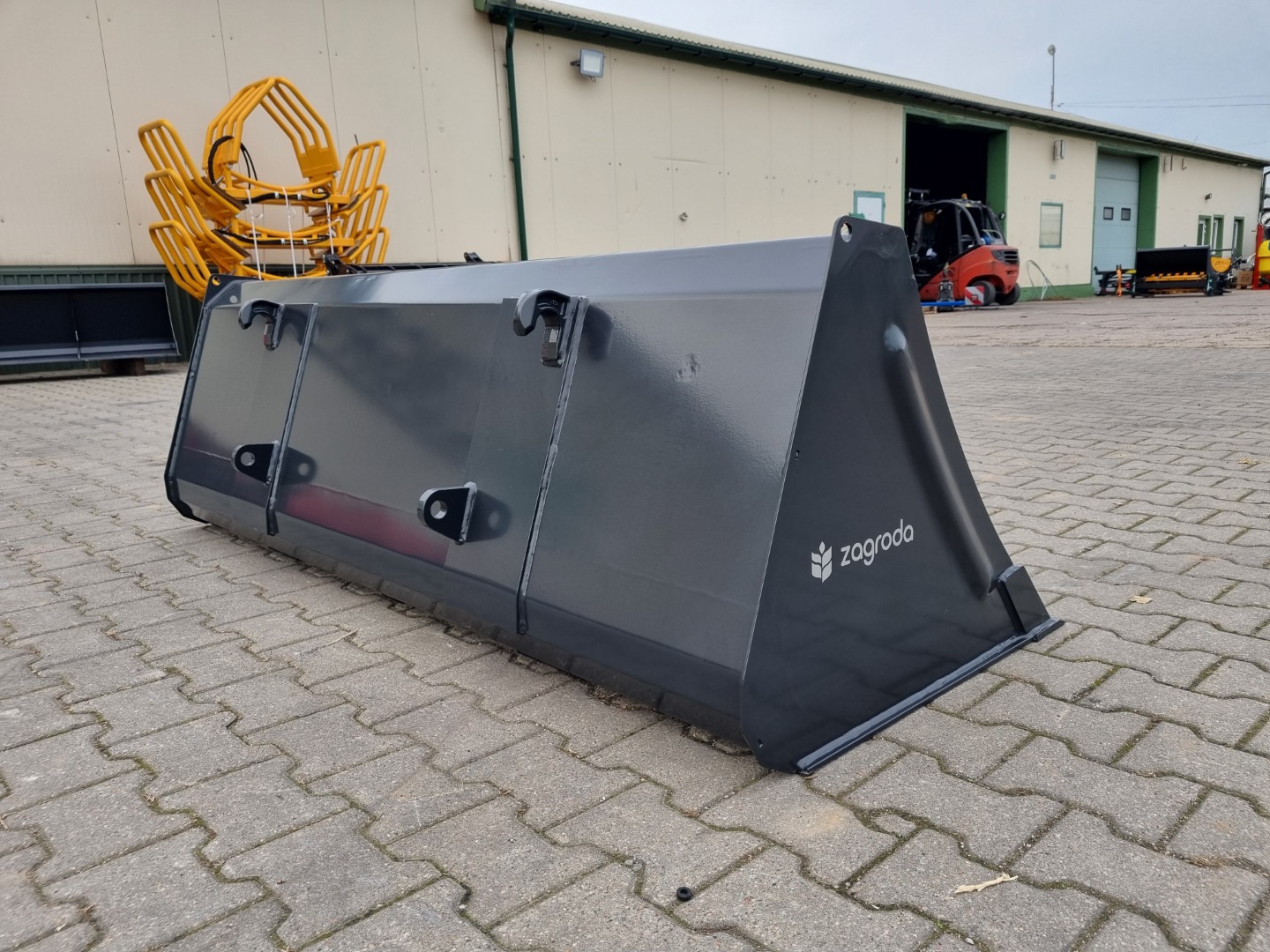

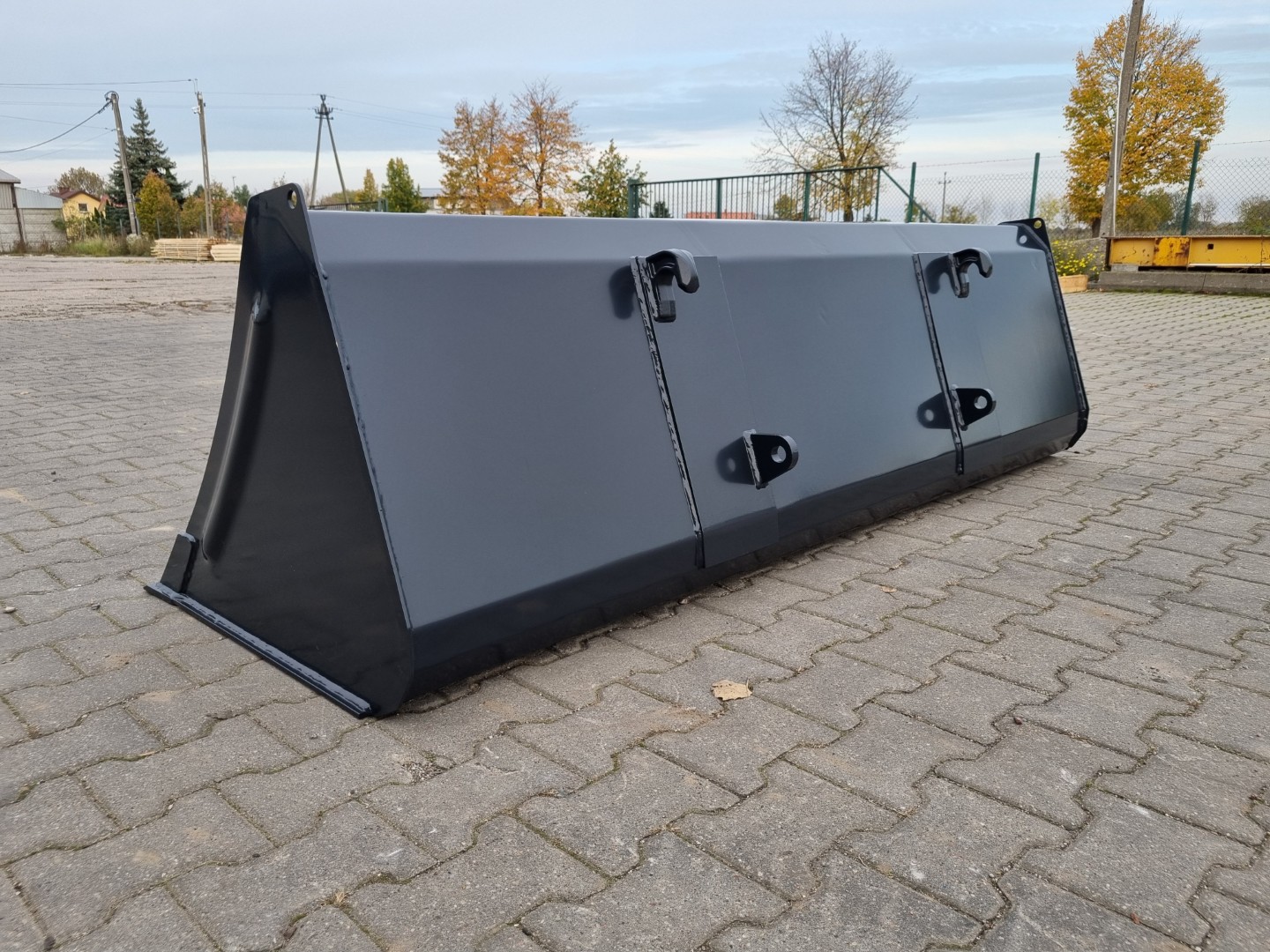

• EURO mount
Optional equipment
• Other type of brackets
Product number
2008G;2002G;2005G;2003G;2004G;2006G;2007G
