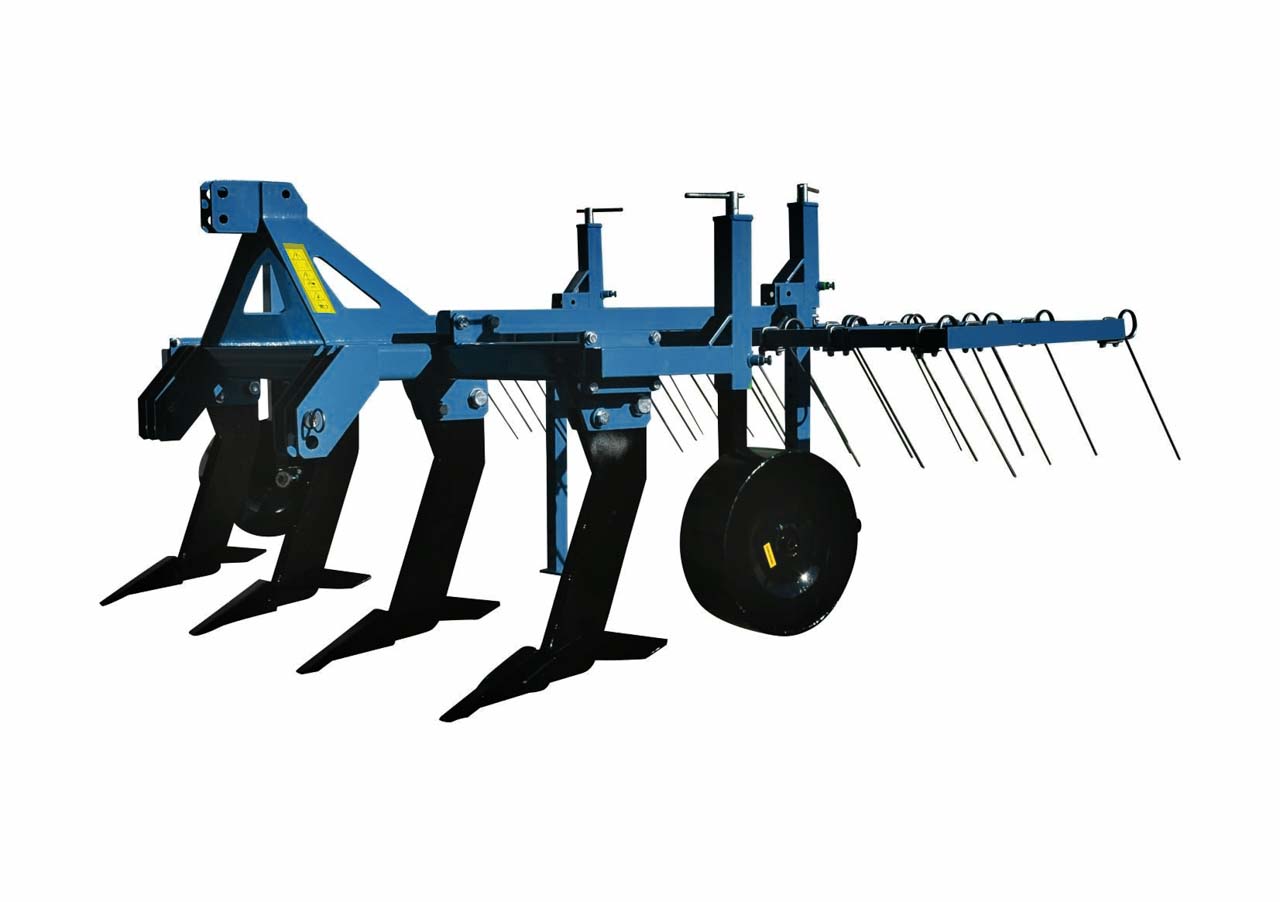

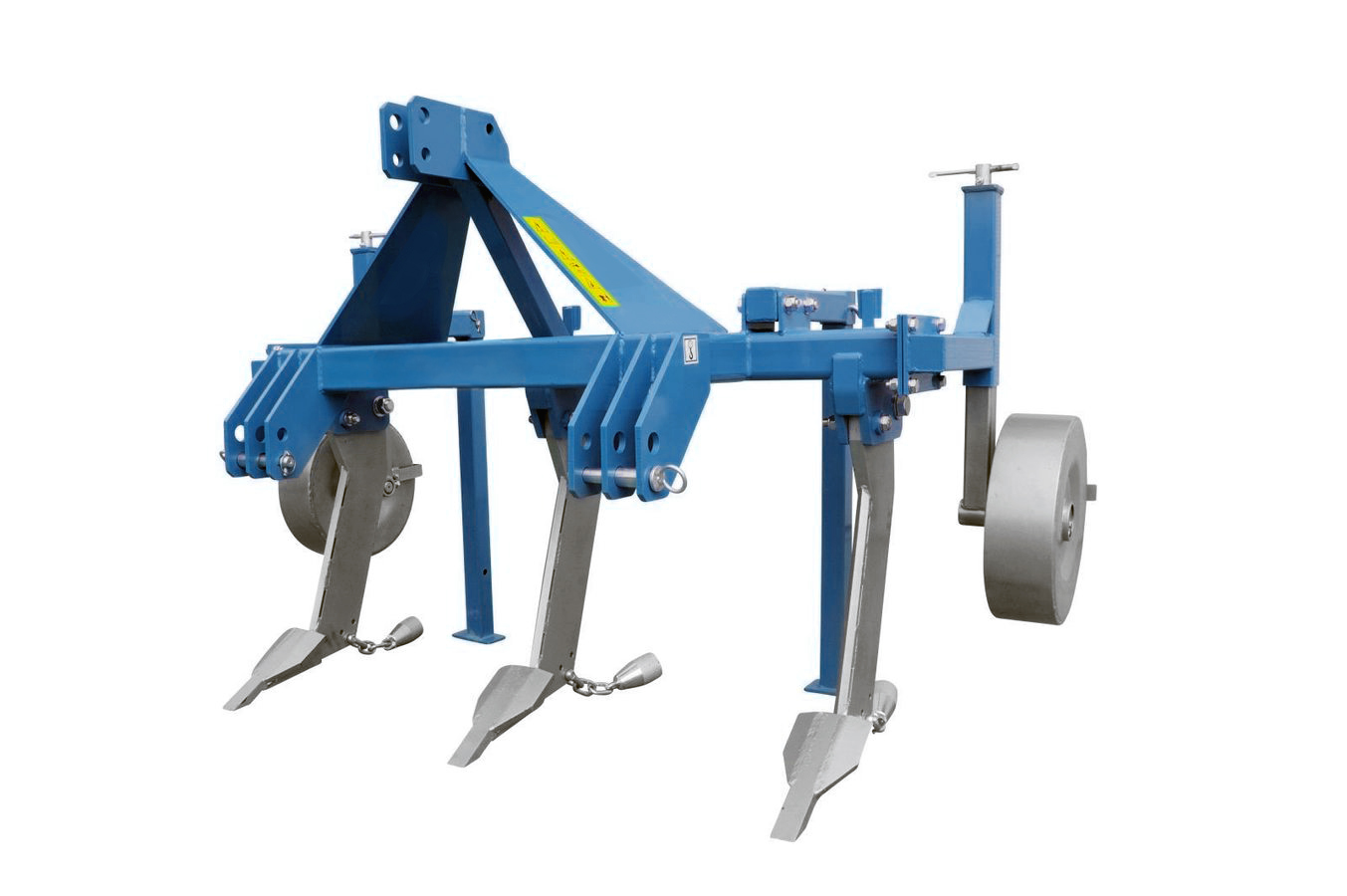

Universal subsoiler with straight fixed tines (working depth up to 45cm)
| Ref.No. | Working width [m] | Number of tines [pcs.] | Power demand [HP] | Weight [kg] |
| 8291 | 1,9 | 1 | 32 | 290 |
| 8292 | 2,3 | 2 | 64 | 375 |
| 8293 | 2,3 | 3 | 96 | 425 |
| 8294 | 3,0 | 4 | 128 | 500 |
Standard equipment
• 3-point linkage cat. II and III
• Working depth up to 45cm
• Clearance under the frame: 79cm, space between tines 75cm (subsoiler with 2 tines has space 150cm between tines)
• Tine thickness: 30mm with hardened front surface
• Tempered replecable points
• Drainage cone mounted to the tines with the chain
• Shear bolt protection
• Supporting leg
Optional equipment
• Two supporting metal wheels, enable mechanical working depth adjustment

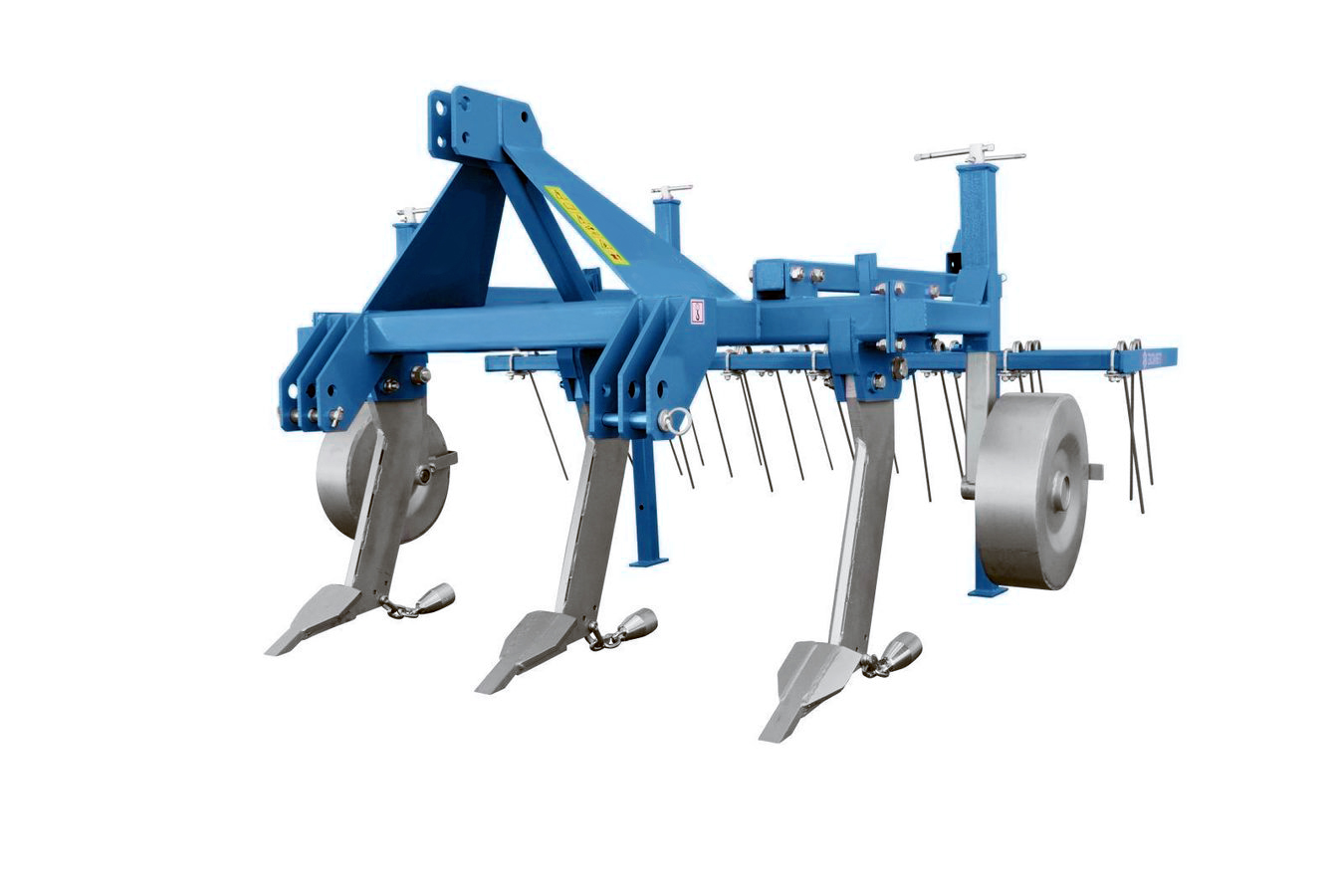

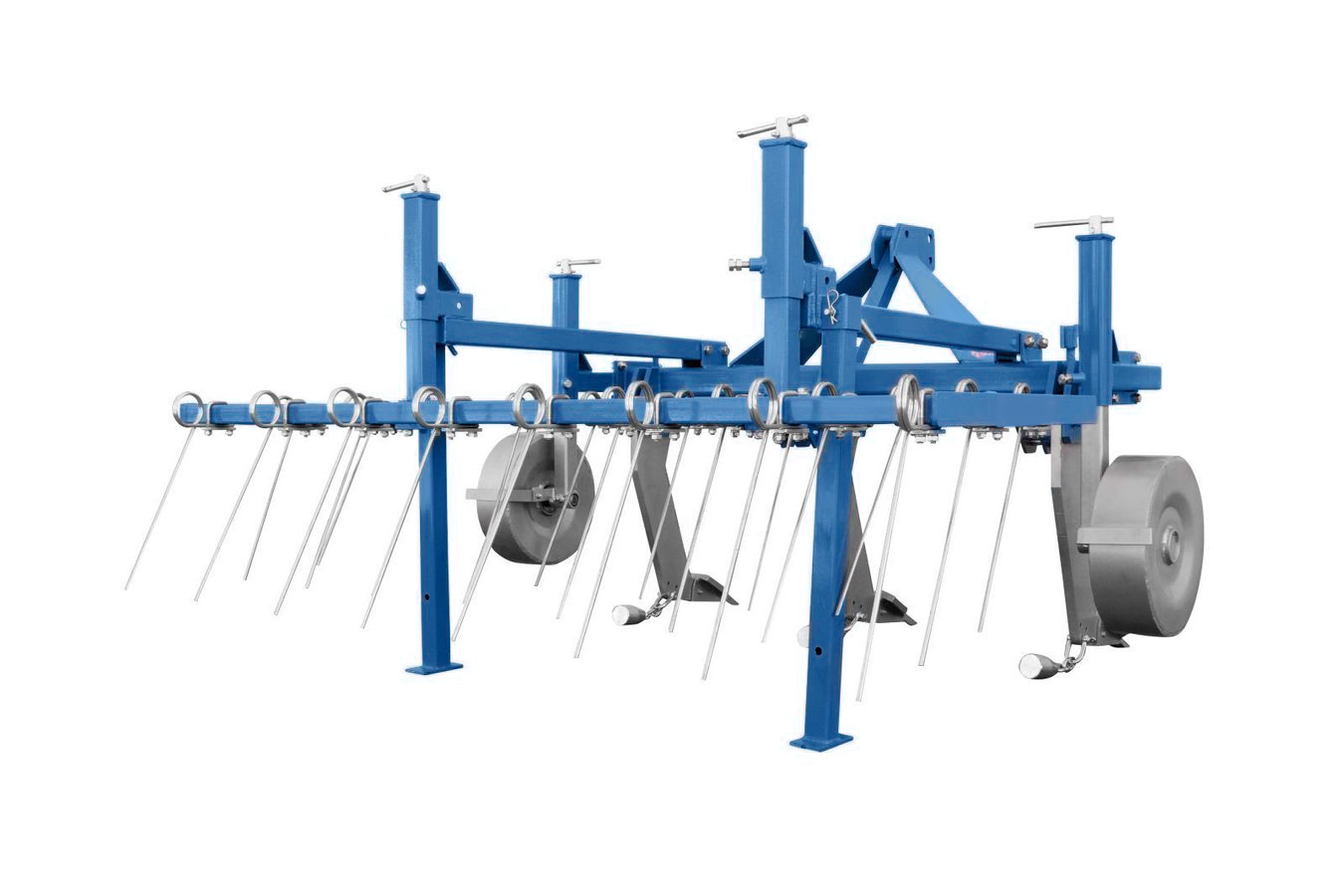

• Row of harrow springs
Product number
8291;8292;8293;8294
Description
| Ref.No. | Working width [m] | Number of tines [pcs.] | Power demand [HP] | Weight [kg] |
| 8291 | 1,9 | 1 | 32 | 290 |
| 8292 | 2,3 | 2 | 64 | 375 |
| 8293 | 2,3 | 3 | 96 | 425 |
| 8294 | 3,0 | 4 | 128 | 500 |
